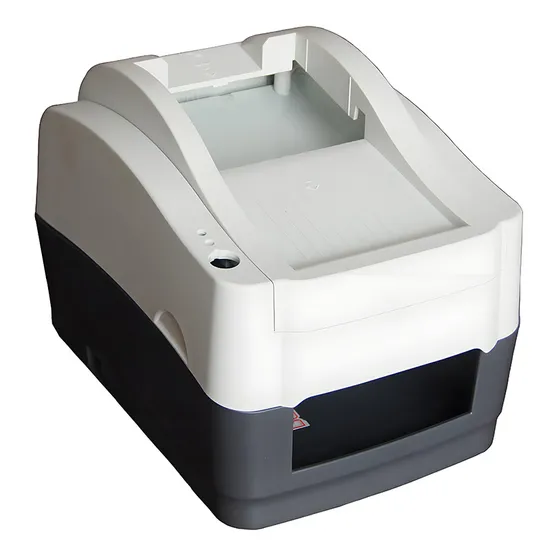

Long Life Customized Printer ABS Shell Plastic Injection Mould Printer Plastic Injection Molud with Haitian 450t

Product Description

Product Description
We have developed a full-range Plastic injection die universal supply. In home appliance such as washing machine, refrigerator, air conditioner, gas cooker, rice cooker, microwave oven and water heater etc. Meanwhile, we can also offer other area molds, including:

Electronics
Aerospace
Automotive
Retail
Medical
Plumbing
Agriculture
Food and Beverage
Construction
etc.
Product Parameters

Mould name:	Plastic injection mold
Mould core material:	S45C, S136, S136H, S50C, P20, 718H, 738H, NAK80
Runner:	Cold runner/Hot runner
Hardness of steel:	HRC38~42/HRC34~6/HRC48~52
Mould cavity	Single cavity
Mould standard:	MISUMI
Mould installation:	Manual
Design soft:	UG
Molding surface treatment:	Polishing,Smooth, Glossy, Textured, Matte
Mould Life:	100 thousand~300 thousand times
Plastic product material:	POM, ASA, ABS, PC, ABS+PC, PA, HIPS, PVC, PE, PS, Acrylic, etc.
Production process:	Injection molding
Mold or product size:	1) According to customers' drawings
	2) According to customers' samples
Warranty Period:	1 year or 100 thousand shots(in this period, if the mold have any problem, we will offer the parts or service by free, but it does't include the problems caused by wrong operation)
Mould precision:	+/-0.01mm
Ejection system:	Motor/hydraulic cylinder/stripping plate/angle pin, etc....
Cooling system:	Water cooling or Beryllium bronze cooling, etc.
Quality system:	ISO9001

Company Profile
"To do the most, to show the best"
Located in Qingdao, Shandong, with about 20 years development, Hiparter specializes in designing and making injection die, and reached a level where we can confidently and consistently follow the work of the injection die process.

Our management system is ISO9001. Our dies are not only manufactured fast and well, but also at an affordable price. There are rich experienced engineers and workers in factory, our quality assurance system tracks every aspect of the design and building process to guarantee the quality and delivery time of the die.

We have a unique business philosophy, rich production management experience, excellent technical team, for the development of design, manufacturing, after-sales service to provide a full guarantee.
Committed to mold design and manufacturing, Hiparter is always willing to make friends with every customer.
Design capacity
We adhere to total solution service: product design optimization→ die design→ die manufacturing →die debugging→ product inspection→ die specification manual sharing→ after-sales support.

Diverse Design Resources
· Equipped with word-class CAD / CAM / CAE resources.
· Proficient in 2D/3D design, entity parting.

Experienced Technology Engineers
· 50+employees in engineering design center
· 10+employees are engaged in CAE simulation.
· 40+designers are engaged in product design, process design and mold structure design.
· 10+design and technical directors have 10+ years experience.
Variety of Mold Category
With more than 20 years of mold technology experience, Hiparter can develop and build all kinds of injection mold. Such as:
· Hot runner injection mold · Double-color Mold
· Gas Assisted Mold · RHCM Injection Mold
· Insert Mold · Overmold
· Stack Mold · Reverse Mold
· IMD Mold etc.
Advanced equipments
"a workman must firstly sharpen his tools if he want to do his work well" Advanced high precision equipment guarantee the high quality of the die. We have a full range of die processing and manufacturing equipments, and almost all the machining process completed in-house. On the spot, all engineers will debug and check the dies in person after manufacturing.

Manufacturing Capacity
1. 40+ sets of molds per month.
2. Slow speed wire cutting machine and middle speed wire cutting machine more than 11 sets.
3. Fully equipped with grinder machine, milling machine, drilling machine, CNC machining, wire cutting machine, etc.
4. Almost all the machining process completed in-house.
5. We can guarantee the quality and lead time.

Quantity of Machines

Item	Plastic Injection Machine (Tonnage)	Qty.	Remark
1	2500	1
2	1800	1
3	1300	1	With EOAT
4	700	1	With EOAT
5	750	1	2K/3K
6	450	1
7	380	1
8	160	1
	TOTAL	8

Machining Equipments
Measurement Equipments

Name	Brand/Made In	Qty.
CMM	Hexagon, Swiss	1
CMM	AEH	1
Vision Projector Measurement Machine	China	2
Alloy Analyzer	LANScientific,China	2
Portable blue ray scanner	China	1
HSCNA-771

Export capability
Our dies have been approved and appraised by our customers. We offer prototype making and free image design for customer analyse.
We also provide good after-sales service and enjoy a good reputation among customers both at home and abroad, including Haier, Hisense, AUCMA, Midea, SANYO, KIA. GM, etc.
The products have been shipped all over the world including destinations in Europe, North America, South America, Japan, Korea, and so on, more than 30 countries.

Packaging&Shipping

Painting	Convenient to identify your die
Slushing oil	Protect the die surface avoid rust
PE film	Keep the tool surface clean
Related documents	All the details for this die, such as structure drawing, instruction of operation, maintenance manual, inspection report, factory checking list etc.
Outer packaging	Plywooden case, exported standard.
Fastening	More stronger to aviod damage

FAQ
Q1: Are you a trading company or manufacturer ?
A: We are factory and located in Qingdao City, Shandong Provice, China.
Q2: What information is required for a quote?
A. Please provide us with product 2D or 3D drawing. If you don't have drawings on hand, samples are also available for checking cost.
Q3: Can I have my own design?
A: Yes, we are very capable to do customized design and make for you. Please share with your ideas, we will discuss your needs, purpose and objective thoroughly and work together with you for the whole project.
Q4: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection.
Q5: How long is your delivery time?
A: The lead time of T0 sample depends on the mould structure, and generally it takes 40-50 days from receipt of final drawings, deposit and mold design approval. Mass production delivery time depends on the order quantity.
Contact Us
Make friends with every customer, provide them with quality products, and create more value for our customers, which is our forever concept.
More accurate quotation, please send us 2D/3D drawings of your products to us.
