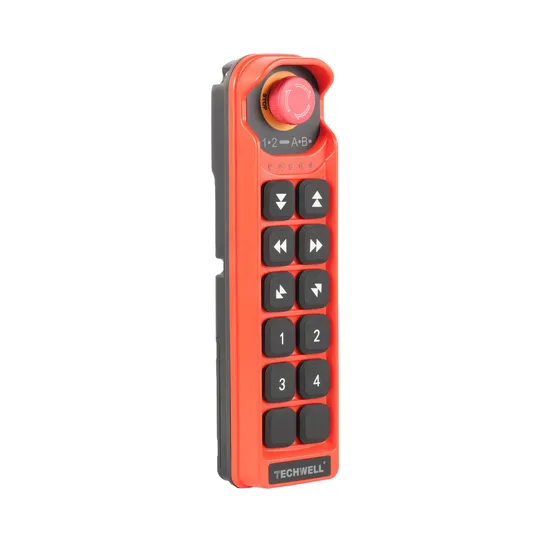

Techwell a 10-Key Single-Speed Industrial Radio Remote Control Transmitter for Crane and Construction Equipment

Product Description

Product detail photos
Product Parameters

Transmitter parameters
Model	TK100-S10
Size	240×63×45 mm
Weight (without battery)	0.28kg
Number of button	12
Materials	Engineering plastics
Protection grade	IP66
Method of button	Self-resetting
Power supply	Two batteries, size 5, 3V
Remote control distance	≥150m
Current	Current during standby: 5uA; average operating current: 10mA
Output power	10mW
Frequency range	429MHz~459MHz
Form of antenna	Built-in
Operating temperature range	Temperature: -25ºC~70ºC; humidity: 0%-97%rh; anti-condensation
Additional functions	Indicator

Receiver parameters
Model	MQN
Size	166*185*83 mm
Protection grade	IP66
Weight	1.25kg
Switch output	16
Receiving sensitivity	-117dBm
Communication distance	100 m
Service voltage	DC12-30/AC36-220
Standby average power consumption	16mA@AC 220V
Work environment	Temperature:-25ºC~70ºC
Frequency segment	433MHz wave band:427.000~436.300MHz; 470MHz wave band:472.350~485.775MHz;
Transmitter antenna	Built in
Optional	AC36-388

Company Profile Shanghai TechwellAutomationTechnology Co,Ltd.(hereinafterefered to as"Techwell andShanghai CaftmeterControl Technology Co, Ltd,founded in2005, isahigh-tech enterprise with adedicated R&D focuson industial wielesscommunication and control. Over the years,Techwellhasemergedasaleaderinthe field ofinteligentremotecontrol withinChina,specializinginindependent R&D,technicalconsuting.andsystemintegatonto facilitate equipment remotiation and intelligence
The R&D team,primarilycomposed ofprofessionalswith etensive experience in adio and cicuit design,mainly includes individualswith doctoral, master's,and undergraduate degrees. Additionally,theR&D personnel comprises over30% of theworkforce. Throughstrategicindustry-university-reseach collaboration with the University ofShanghai forScience and Technology, Techwellconinues todelveinto thefield of intelligent remote control, stiving to assist theindustry in achievinga moreintelligent,eficient,and secure diectionWith completeintelligentremote controlequipment and high-quality after-sales service system, Techwell hassuccesfully providedvariousspecialized intelligentunmannedremotecontrol echnology solutionsand senices toovera hundred large dometicwell-knowngroup enterprises.
At Techwell, we introduce mature production technology to constantly optimize our equipment, strengthen production processes, and integrate research and design processes to make ourselves move towards semi-automatic and automated production. Our production line follows standardized and visual management procedures, ensuring the quality of each product. We regularly train our personnel,and over 50% of our staff possess intermediate or advanced skills, giving our customers
confidence in our offerings
Feature:
·Long batterylife,high protection gade,ergonomic design.
·Oilresistant buttons,highly customizable.
Our Advantages
Packaging & Shipping
