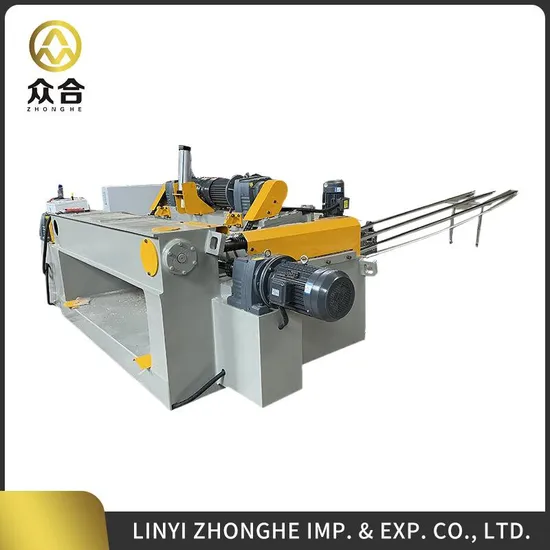

Customizable Wood Veneer Cutting and Peeling Machine

Product Description

Product Description
The spindleless rotary peeling machine is used to process log into continuous veneer strips for plywood and wood based panel.
It is mainly used to recycle the remaining wood cores peeled by the spindle rotary peeling machine or the wood log debarker.
USAGE:
Cut the log into veneer.
For furniture, decoration, construction...

Working principle:
The log is supported by an extrusion friction roller that has both a pressing and feeding function and two main friction rollers with surface textures that press the log and drive the log. A peeling knife is screwed into the log under the extrusion friction roller.
When working, the friction roller that always presses the log in the full length direction rotates in the same direction, drives the log to rotate, and feeds the log to the peeling knife, and finally peels the log into veneer.

Product Parameters

1	Model	BWXQ-L1500-D550	BWXQ-L2700-D550	BWXQ-L3300-D550
2	Max. log length	1500 mm	2700 mm	3300 mm
3	Log diameter range	32 - 550 mm	32 - 550 mm	35 - 550 mm
4	Veneer thickness	1 - 3 mm	1 - 3.6 mm	1 - 3.8 mm
5	Peeling speed	45 - 90 m / min (adjustable)	45 - 90 m / min	0 - 80 m / min
6	Total motor power	33.9 KW (11+5.5*2+7.5+2.2+2.2)	41 KW ( 7.5 * 4 + 11)	75KW ( 11*2+15*2+15+4+4)
7	Machine size	4600 * 2000 * 1600 mm	5300 * 2100 * 1500 mm	5300 * 2100 * 1500 mm
8	Machine weight	6800 KG	8500 KG	9300 mm

Above parameters are just for reference, they can be customized according to requirements
Machine Features
Main frame:
made of high-strength steel to ensure the stability and durability of the structure
Rollers:
Chrome plated for more wear resistance, with various patterns to adapt different kinds of wood and to increase friction, the log is stably fixed on the machine for rotary cutting.
Servo Motor:
Equipped with frequency converter,
adjust rotary cutting speed according to needs.
Precisely control the size, thickness and quality of every veneer.
Lead screw:
International famous brand,
hardened by quenching treatment, longer life
PLC system:
Simple page, simple operation
Safety protection device:
Set protective covers in key parts to avoid accidents according to past experience.
Machine Photos for Reference


Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine,.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3-Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications

Our Advantages

1. Rich experience and professional design
We have lots of experience in exporting plywood machine production.
The layout of the factory is designed reasonably to meet safety production and high efficiency.
2. Competitive price
ZHONGHE has own factory, with the same configuration, the price is competitive.
And we are familiar with the Chinese market, our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the production line until it runs well and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provides one-stop service, including market analysis and professional technical consultation, raw materials, equipment installation, personnel training, professional after-sales service team, renovation of old equipment.
5. Quality control
We guarantee strict quality control of equipment in production, before leaving the factory and a complete quality management system for purchased parts.
Customers are always welcome to make videos or come to the factory to know the production status.
6.Pre-sales service
According to the needs of customers, to provide data, pictures, videos for reference, to give timely answers to customer questions, to make customers satisfied is our purpose
7.After-sales service
We offer installation, one year warranty, lifetime parts replacement and repair services. Customers can contact us anytime and anywhere by email, and if necessary, we will let professional technicians to solve the problem.
FAQ
Frequently Asked Questions
1. About Customization :
All the size, color, overall shape... of our products can be customized.
If you have any special needs, we can customize the machines according to your requirements.
2. Delivery date:
25-30 days
3. Price changes:
The price of the product will change according to the real-time price of the raw material
4. Welcome to visit our factory
