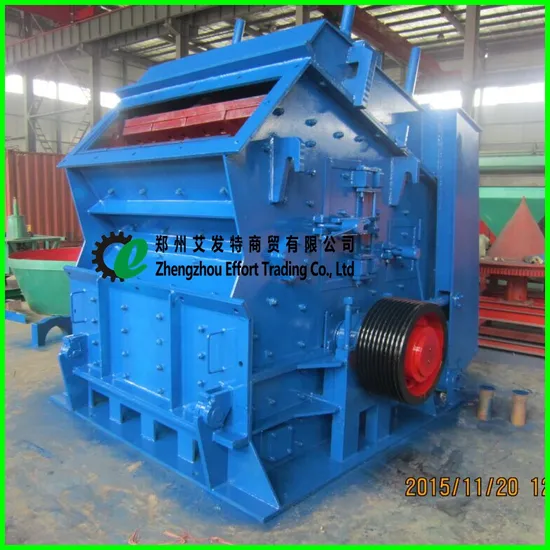

Durable Stone Crushing Equipment, Construction Impact Crusher

Product Description

Durable Stone Crushing Equipment, Construction impact crusher
1. Impact crusher Description:
Impact crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, concrete aggregate, etc.
2. Impact crusher Working principle:
When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process wont stop till the material are crushed to the required size and then discharged from outlet.
3. Impact crusher Features:
1.Large feed size and high crushing chamber are suitable to crush hard and big materials;
2.Space between impact plates and hammers can be adjusted conveniently, so the shape and size of final product can be controlled;
3.New type of abrasion-proof materials are used, so life of hammers, impact plates and lining plates is much longer;
4.High chromium hammer and unique lining plate are suitable to crush hard stones efficiently.
4. Technical Data:

Model	Specification (mm)	Feeding size(mm)	Max feed size(mm)	Capacity (t/h)	Motor power(kw)	Weight(kg)
PF-0607	644*740	320*770	100	10-20	30	10216
PF-0807	850*700	400*730	300	15-30	30-45	11138
PF-1008	1000*800	400*830	300	30-50	37-55	12206
PF-1010	1010*1050	400*1080	350	50-80	55-75	13138
PF-1210	1250*1050	400*1080	350	70-120	110-132	15200
PF-1212	1250*1250	400*1300	350	100-150	132-160	17025
PF-1214	1250*1400	400*1430	400	130-180	160-200	19015
PF-1315	1320*1500	860*1520	500	160-250	180-260	24600
PF-1320	1320*2000	860*2030	500	300-350	300-375	29800
PF-1520	1520*2000	980*2980	700	400-500	400-480	38600

5.The Applicable materials
