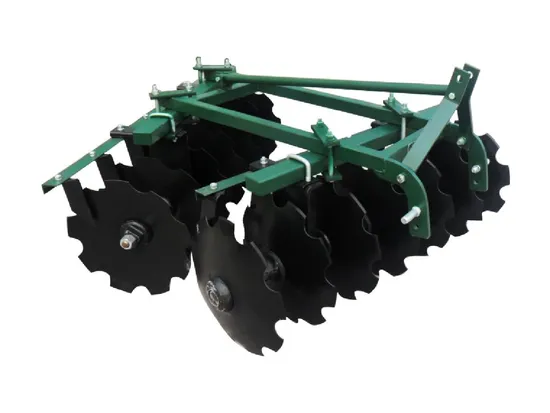

50HP Tractor Disc Harrow Trailing Disc Harrow Mini Disc Harrow

Product Description

50hp tractor disc harrow trailing disc harrow mini disc harrow
Product Description
Light-duty disc harrow series 1BQX mounted are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning stubbles in light soil field. It features reasonable structure, good durability, user convenience and strong clod crushing ability, etc.
This 1BQX are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.2	1BQX-3.4
Working Width (mm)	1100	1300	1500	1700	1900	2200	3400
Working Depth (mm)	100-140
No of Disc(pcs)	12	14	16	18	20	24	42
Diameter of Disc (mm)	460mm/18inch
Weight(kg)	200	220	240	260	290	350	1100
Linkage	three pointed mounted						trailed
Matched Power (hp)	12-15	15-18	25-30	30-35	35-40	55-60	80-100

Detailed Photos
The disc blade is our factory's own production, is our ace products, with the best steel, Angang Lingyuan steel, excellent heat treatment technology, disc blade warranty for one year, farmers rest assured to use, customers do not have after-sales service problems, more comfortable.
Disc harrow using full - clad bearing, It is not easy to enter sand and water, and can be added with butter for a long service life.
Use a more durable 40 square shaft, not easily deformed. Long service life.
After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
Our Advantages
Blade uses brand water-based paint in painting, which is energy saving. And drying process is added to improve the quality of the paint adhesion to blade surface.
Company Profile
Established in 2000 year, Shandong Bank Invenstment Agriculture Development Pvt. Ltd. (BIA) is a globally renowned manufacturer of Farm Equipment under the brand name BIA. Synonymous with quality and durability, BIA is a brand of choice amongst farmers in CHINA and 100 other countries. Company`s diverse range of products include Tractor, Power Tiller, Seeder equipments, Sprapers, Tillage Implements ( Disc harrow, Disc plow, Rotary tiller, Cultivator, Furrow plough Ditching ridger, Scraper, Hole digger) etc. Marked by 20 years of experience, we have been contributing to agricultural growth by providing innovative implements at the most affordable prices.
With our pursuit to perfection in all the spheres of the business, we have made a strong presence in domestic as well as overseas market. Our state-of-the-art manufacturing units are equipped with advanced machinery capable of executing bulk orders with precision. We use best quality of raw material and sustainable engineering designs for manufacturing innovative implements of International standards. Our company has been certified with ISO 9001: 2008 for following a world-class quality management system.
FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose US for cooperation?
A: Comparing with our competitors, we have much more advantages as follows: 1. More than15years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms. contact way
If you have any questions, please feel free to contact me.
