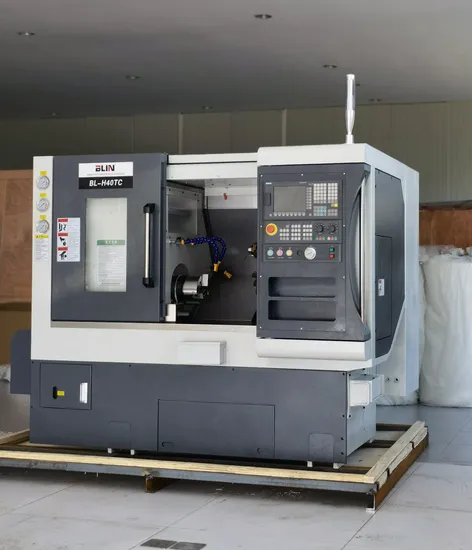

Slant Bed CNC Lathe with C Axis and Tool Turret (BL-H40T/TC/TY)
| US$28,000.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-H40T/TC/TY
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Plywood Case
Trademark
BLIN
Origin
Ningbo China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Slant bed cnc lathe c axis with tool turret(BL-H40T/TC/TY)- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand
- Adopt 30°integral slant bed design
- Z axes adopt ROLLER type linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- H40T mount 8T hydraulic-servo tool turret
- H40TC mount C axes and 12T Powered tool turret
- H40TY mount C axes and 12T Powered tool turret with 90°Y axes Details:
| Item | Specification | Unit | BL-H40T | BL-H40TC | BL-H40TY | |
| Capacity | Chuck size | / | 6''(8''*) | |||
| Max. swing dia. over bed | mm | Φ400 | ||||
| Max. swing dia. over saddle | mm | Φ300 | ||||
| Max. turning length | mm | 300(6'' chuck); 290(8'' chuck*) | 260/240(BMT40,6''/8''* chuck); 250/235(VDI30*, 6''/8''* chuck) | 240 | ||
| Max. turning dia. | mm | Φ310 | Φ240(6'' chuck); Φ320(8'' chuck*); | Φ225 | ||
| Standard turning dia. | mm | Φ150(6'' chuck);Φ200(8'' chuck*) | ||||
| Spindle | Spindle bore | mm | Φ56(Φ66*) | |||
| Spindle end type | / | A2-5(A2-6*) | ||||
| Spindle speed | rpm | 5000(4000*) | ||||
| Max. bar through dia. | mm | 44(51*) | ||||
| Spindle motor power | kw | 11 | ||||
| X/Z axes | X/Y/Z axes linear guideway type | / | BALL type/BALL type/ROLLER type | |||
| X/Y/Z axes linear guideway width | mm | 30/30/30 | ||||
| X/Y/Z axes ball screw O.D. | mm | Φ32 | ||||
| X/Y/Z axes ball screw pitch | mm | 10 | ||||
| X axes travel | mm | 180 | 180 | 110 | ||
| Y axes travel | mm | / | / | 70 | ||
| Z axes travel | mm | 320 | 280 | 250 | ||
| X/Z axes rapid moving speed | m/min | 30 | ||||
| Y axes rapid moving speed | m/min | / | / | 8 | ||
| Tool turret | Tool turret type | / | 8T/12T* Hydraulic-servo tool turret | 12T BMT40 Powered tool turret; 12T VDI30 Powered tool turret* | 12T BMT40 Powered tool turret with Y axes | |
| Toolshank size | mm | 25×25, Φ40(SAUTER 8T); 20*20,Φ25/32(SAUTER 12T*); 25×25, Φ32(GSA 8T*) | 20×20, Φ32 | 20×20, Φ32 | ||
| Live tool type | / | ER20(BMT40);ER25(VDI 30) | ER20(BMT40) | |||
| Tailstock | Tailstock quill taper | / | MT4# | |||
| Tailstock quill dia./travel | mm | Φ70/70 | ||||
| Accuracy | Positioning accuracy(X/Z) | mm | 0.008/1000 | |||
| Repeat positioning accuracy(X/Y/Z) | mm | ≤0.005 | ||||
| Others | Overall size | mm | 2180×1830×1710 | |||
| N.W. | kg | 3100 | 3200 | 3300 | ||
* As option
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-ROYAL |
| Tool turret | TAIWAN-GSA/GERMANY-SAUTER/ TAIWAN-YULIN/SWIFT |
| Ball screw | TAIWAN-HIWIN C3 class |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN HIWIN P class |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock
Optional configuration:
- SYNTEC/SIEMENS 828D/FANUC CNC controller
- C axes& powered tool turret
- Y axes
- Automatic chip conveyor
- Tool setting probe
Other models choice:
All our machines range:
