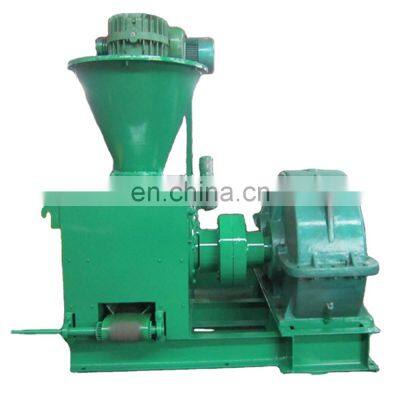

10-12t/h complete coke breeze briquette production line

Product Description

Product Description
Product Details10-12t/h complete coke breeze briquette production line designed and supplied by sinolion company Material: coke breeze powderMaterial moisture:13%Briquette shape and size: Oblate shape. Briquette dia:60mmCpacity:10-12TPH coke breeze briquette production lineProduct IntroductionThe complete coke breeze briquette production line introduce:Complete briquettion line include machine: Material-Constant feeder- Wheel grinding mixer-Double shaft mixer-Coke breeze briquette machine- coke breeze briquette dryer (mesh belt dryer).Product Parameters Machine name Specification Quantity Usage Angle belt conveyor 0.5*11m 1 Transport coke breeze powder to constant feeder Constant feeder PLD 800(2 Case) 1 Dosing 2 different coke breeze to one briquetting line Distributor ----- 1 Divide material into two wheel grinding mixer machine Wheel grinding mixer S114 2 Mix coke breeze enough with binder Binder mixer Φ1.0*1.2 2 Stirring several kinds binder material to get binder for line Double shaft mixer 3500mm 1 Mix material and binder again to confirm get good briquette Briquette machine XM650 1 Press coke breeze powder to briquette use press rollers Angle belt conveyor 1.5*15m 1 Transport wet material to briquette machine Mesh belt dryer 24.5*5 layer 1 Dry wet coke breeze briquettes to use demand Belt conveyor 0.5*7m 1 Transport dry briquette to storage areaMain machines pictures for complete coke breeze briquette production line as belowHopper and crusher1. HopperModel:3m3Steel plate thickness:5mm/3mmVibration motor power:3 kwOverall size：1900*1900*2090mmDischarge hole:400*400mm2. Combination crusher Model: PFL-1000Input size :≤150mmOutput size :≤5mmHammer material: Mn13 alloy hammerHammer Quantity:24 piecesMotor power:55kwMain shaft speed :769r/minOverall size:2600*1400*1900mmCombination crusher inside show:Include hammers, Liners and rotor.Combination crusher PulleyIt use V-belt connect motor.Combination crusher Motor:Power:55kw, supply enough power.Constant feeder3 Constant feederModel:PLD 800(2 Case)Power:3-4kwMotor quantity:3 setsPower 3*4 KwWeighing bin:1setAutomatic weighing control display:1 setQuantity 1 setMixer machine4 Distributor5. Wheel grinding mixer Model :S114 Stir time 3-5minPlate diameter 1820mmRunner wheel diameter 750mmRunner wheel width 240mmSpindle speed 34r/minPower 15KWOverall size 2080*1882*1755 mmWeight 3.5T Quantity 2 set6 Double shaft mixer Model 3mPower 22 kwSpeed of main shaft 60r/minReducer ZQ400Overall size 3680*1300*960mmQuantity 1 setBriquette machine7. Briquette machineModel 850-650-470Motor Model :Y280S-6, power: 45 kwReducer Reducer type :ZQ850, Reducer ratio:37.5Roller Φ650*470mm, Material: High chrome alloy( ZGCr15SiMn Quenching)Main shaft speed 10-11r/minPro-loading system Motor: YCT200-4A, 5.5 KW(Speed adjustable ) Motor speed:1250-125r/min. Spiral typeQuantity 1 setBriquette dryer8 Coke briquette dryer Model 24.5m*2.44m*5layerConveyor chain wheels 24 A; pitch 38.1, Reducer chain wheels:50.8 pitchesReducer Reducer type : BWED74, Reducer ratio:1:253Motor Model: YCT200-4B, Power:7.5 kw (2 sets) Range of speed adjust:1250-125r/minSpring length100mm; inner holeΦ82mm; thicknessΦ16Mesh wire’s thickness Thickness:Φ3mm Wire Quantity: 1 set
