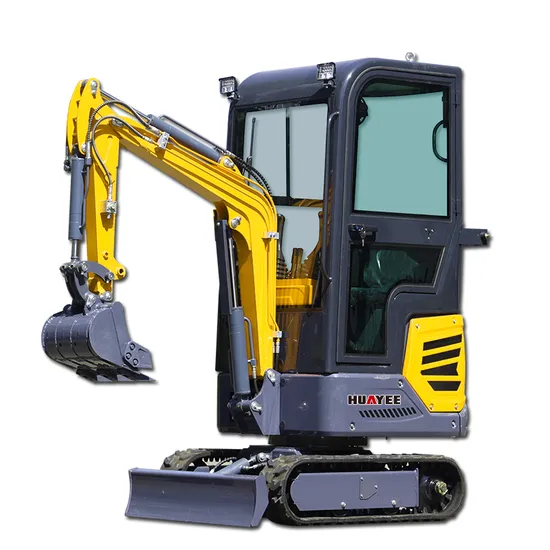

Multifunctional Hydraulic Mini Crawler Excavator Engin Diesel Mini Digger 1.2 Ton Recruit Agent Micro Digger Excavator Bagger

Product Description

my friend,Welcome to Shandong HuaYee Heavy Industry Group Co., Ltd.
A company specializing in the manufacture of small excavators in China,
You can choose any type of excavator you need and support various customizations.
Looking forward to cooperating with you very much.
Send Inquiry,
Get exclusive services and exclusive discounted prices.
Now more and more people will choose to buy small excavators from China, mainly because the quality is good and the price is cheap, you don't have to worry about how to receive the excavator and how to deal with the problem after. We can provide you with a complete set of service solutions, and we have a complete production team, marketing team, and after-sales team. You just need to choose the model you need and consider whether it is the right price.

Overall Size
Overall length (when transported)	2870 mm
Overall width (transport/work)	930 mm
Overall height (with/without roof)	2285(2030)mm
Bulldozer width	937 mm
Bulldozer height	210 mm
Track center distance	746 mm
Standard track shoe width	180 mm
Platform ground clearance	405 mm
Standard Bucket Width (With/Without Teeth)	380/330 mm
Track length	1200 mm
Scope Of Work
Maximum excavation height	2490 mm
Maximum unloading height	1745 mm
Maximum excavation depth	1725 mm
Maximum vertical arm digging depth	1655 mm
Maximum digging distance	3030 mm
Minimum turning radius of front end	1490 mm
Maximum excavation ground distance	2940 mm
Maximum dozing height	170 mm
deepest dozing height	240 mm
Basic Parameters
Operating Weight	1200 kg
Bucket capacity	0.022 m3
Working device form	Backhoe
Engine
Model	KOOP192FA
Power	10 HP
Maximum torque	25/2500 N.m/r/min

The biggest advantage of the HY12 mini excavator:
Details determine our attitude, and details determine the quality of products. Please my friend take a closer look.
1.International famous brand hydraulic hose. Advantages: international big brand, stable and reliable quality!
2. External six-way alloy hard tube Advantages: strong and durable, no fear of wind and sun
3. The external hydraulic hose is equipped with spring retainer and spiral protection. Advantages: Protect the hose from friction, collision, bending, etc. damage!
4. The built-in hydraulic pipes are neatly arranged and standardized. Advantages: easy to view and post-maintenance!
5. The hydraulic pipe is equipped with a guide guard ring. Advantages: Fix the direction of the oil pipe, and protect the oil pipe from damage such as squeezing friction!
6. The hydraulic hose of the boom goes to the inner line, and the oil pipe is placed below the unconventional. Advantages: The hose will not be bumped or broken with foreign objects!
Wait for the details, no longer list them one by one, HUAYEE mini excavator is the most correct choice!
