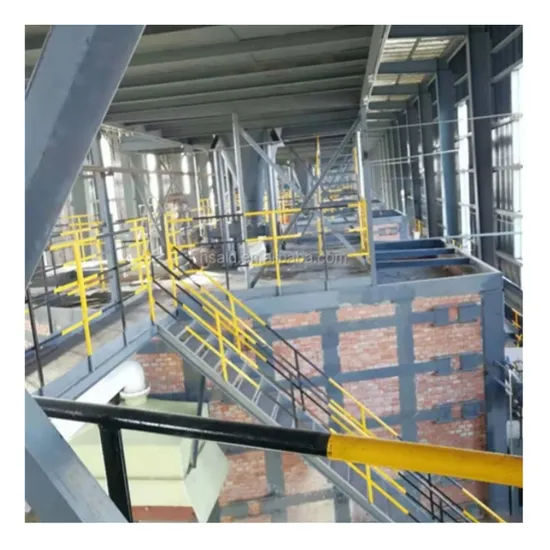

Mannheim Process Potassium Sulfate Production Line for Agricultural Fertilizer

Product Description

Why Choose ALD Mannheim Process Potassium Sulfate Making Machine?
Product Description
K2SO4 Mannheim Process Potassium Sulfate Making Machine is well-known as there are two kind of popular methods to be used to produce Potassium Sulfate Product, one is Double decomposition method, the reaction is not good, the product quality should be improved. Another method is the Mannheim furnace process, it is used widely, but there are some difficulties occurred during the production. We had made the necessary and important improvement and perfection on its production equipment and production process of Mannheim furnace, to form a unique and perfect Potassium Sulfate production technology now, improve the construction and material of furnace to achieve even heating, complete reaction and low energy consumption. New material and technology is applied to the part of hydrochloric acid absorption, thus absorption efficiency is enhanced and environmental issue is also well resolved.
Mannheim Process

The most common method of producing potassium sulfate is the Mannheim Process, which is the reaction of potassium chloride with sulphuric acid at high temperatures. The raw materials are poured into the centre of a muffle furnace heated to above 600ºC.
Potassium sulphate is produced along with hydrochloric acid in a two-step reaction via potassium bisulphate. This method for creating SOP accounts for 50% to 60% of global supply. The Mannheim Process is also the most expensive of the processing techniques due to the high input costs associated with purchasing MOP and sulphuric acid. This means that the final product costs about $500 per ton.
The Mannheim process is an important method for the manufacture of hydrogen chloride and potassium sulfate from potassium chloride (table salt) and sulfuric acid in which case the K2SO4 is known as salt cake: 2 KCl + H2SO4 → K2SO4 + 2 HCl
Technical Advantage

1. Some key components of our potassium sulfate fertilizer equipment are made of special materials which are corrosion resistant and durable. Hence, this fertilizer equipment also features long service life.
2. Waste recovery system to recycle hydrochloride acid (HCl) and meet environment requirements
3. Adjusted original HCl absorption system, improved on the quality of the final product.
4. Improved the flue design in the furnace which can make full use of energy and save energy consumption.
5. Used PLC automatic control system to control manufacturing the products, adjust the ratio of feedstock, and saved the labor cost.
6. Adopt gas generator replacing other heating method.
7. Stable production and easy operation.
8. Large output& Low coal consumption.

Product Parameters

No.	Case	Date
1	SOP plant in Philippines for 10,000MTPA	In 2016 year
2	EPC project of SOP in Egypt for 60,000MTPA&100,00MTPA	In 2015 Year
3	Overhaul the furnace in Indonesia	In 2011 year
4	The project of SOP for 40,000MTPA	In 2010 year
5	Main equipment supplier of SOP in India for 20,000MTPA	In 2018 year
6	The EPC porject os SOP in Indonesia for 10,000MTPA	In 2008 year
7	The contractor of SOP in Phipilippines for 10,0000MTPA	In 2006 year

Potassium sulfate

Description	Index
Content of potassium oxide (K2O) % ≥	50
Content of chlorine (CL) % ≤	1.5
Content of moisture % ≤	1.0
Content of free acid (H2SO4) % ≤	0.5
Appearance	White

Hydrochloric acid

Description	Index
Content of total acid (calculated by HCL) % ≥(HCL)≥	31
Content of iron (Fe) % ≤	0.005
Content of oxide (calculated by CL-) % ≤	0.05
Content of burnt leavings% ≤	0.08
Content of sulfate (calculated by SO42-) % ≤	A acid: 0.005 B acid: 0.5-0.75Production ratio of A & B: ~1:2
Content of arsenic (AS) % ≤	0.0001

Consumption ration of the process for per ton potassium sulfate

Description	Specification	Unit	Quantity
Potassium chloride	K2O 60%	Kg	860
Sulfuric acid	H2SO4 98%	Kg	570
Stone powder		Kg	40
Electricity	V=380 50HZ	kwh	60-70
Fuel	Natural gas	Liter	90
	Diesel oil	Liter	75
Water used for process	≤ 30ºC	M3	1.2
Compensative water for cooling		M3	10

Detailed Photos
Packaging & Shipping
Seaworthy packing:
1. Common package
2. Plywood pallet
3. Plywood case
4. According to customer requirements.
