US$22,900.00-43,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO9000, CCC, TS16949
Engine Model
Cummins Engine Isde210-30
Volume of Body
10-15cbm Garbage Compactor Truck
Steel Grade
Q345b or High Tensile Steel 610 and 700
Truck Brand
Dongfeng Cummins, I Suzu, FAW, Sinotruk
Operation Type
Hydraulic Operation
Loading Capacity
5tons, 8tons, 10tons
Brand Name
Dongfeng Garbage Compactor Truck
Hydraulics
Chinese Famous Brand Jia Heng
Volume of Garbage Body
5cbm/8cbm/10cbm/15cbm/17cbm
Transport Package
Waxed Before on Board
Specification
CCC and ISO9001, ADR, ASME
Production Capacity
100unit/Month
Product Description

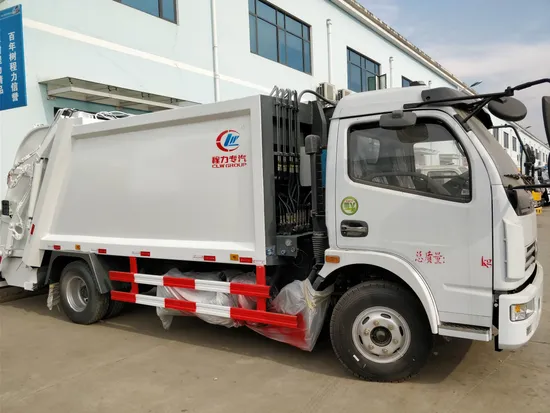

heavy 4X2 Dongfeng 8tons Garbage Compression Truck 10m3 Garbage Compactor Truck
Items | Descriptions | Specifications and Types |
General | Truck Name | Dongfeng refuse compactor truck Dongfeng Garbage Compactor truck Dongfeng waste collector truck |
Drive Type | 4 * 2 , left hand drive |
Loading Capacity | 10-15cbm |
Gross Vehicle Weight(kg) | 16000 |
Curb Weight (kg) | 6575 |
Overall Dimensions L*W*H(mm) | 8670 ×2480 × 310 0 |
Engine | Engine Model | ISDe21040 |
Engine Brand | Cummins |
Fuel Type | D iesel |
Power | 155 kw/ 21 0HP |
Emission Standard | Euro III |
Displacement(ml) | 6700 |
Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
Chassis | Chassis Brand | Dongfeng |
Front/Rear Axle Load( KG ) | 6000 / 10000 |
Tire No. | 6 |
Tire Specification | 10.00-20 Nylon tire or 100.00R20 steel tire |
Wheelbase (mm) | 4500 |
Axle No. | 2 |
Gear Box | 6 speed forward with 1 reverse, manual |
Brake | Air break |
Radiator | Suitable for tropical climate |
Front/rear suspension(mm) | 1 430 /2740 |
Leaf Spring No. | 8 / 10+8 |
Equipment: 1. Equipped with completely sealed dustbin, hydraulic system, operation system. 2. Equipped with rear turnover mechanism,can hook dustbin or loading garbage by itself. 3.Equipped screeds and push shovel, compress by itself.High compression ratio.The sewage will flow to sewage tank automatically, avoid second pollution. Good sealed performance, easily operation,high safety. |
1.rear load garbage compactor truck, Cummins engine, 210hp
2.nice appearance.
3.Simple to operate and highly effective with excellent compaction ratio.
4. Loading capacity is 4m³ to 18m³ Introduction of compression garbage truck
The compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.
Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm
