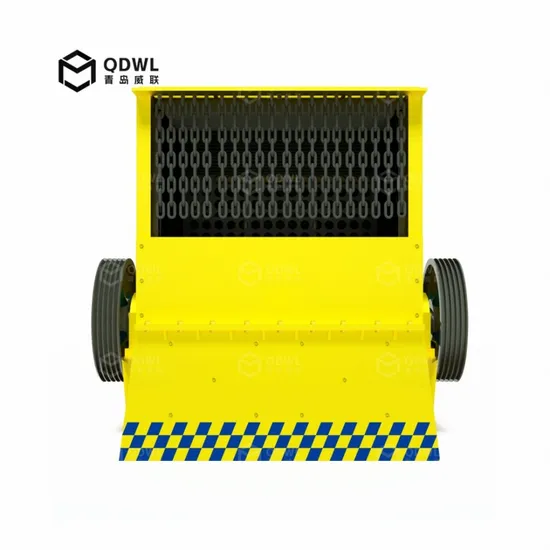

100-150 M3/H Limestone Hammer Jaw Crusher

Product Description

Product Description
Mining Stone Hammer Crusher Machine
Gold Ore Crusher Primary Granite Limestone Concrete Gravel Rock Crushing Hammer Crusher machine
The hammer crusher is a kind of stone crushing equipment advanced technology in hammer crusher series. It adopts advanced production technology to realize one-time feeding and get finished products. Finished materials can be adjusted according to demand, coarse, medium, fine, all kinds of specifications are complete.
It is suitable for crushing various medium-hard and brittle materials with compressive strength of the crushed material does not exceed 350 MPa, such as limestone, coal, salt, gypsum, alum, brick, tile, coal gangue, etc.
PC Hammer crusher is to crush stone by impact force. It has features of simple structure, large crushing ratio, high production efficiency. And it can be used for dry and wet crushing. Hammer crusher is suitable for crushing medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway and other departments. The main working part of hammer crusher is rotor assembly with hammer head. The lower part of the rotor is equipped with a sieve plate, which can adjust the gap between the grate bars and change the discharge granularity according to the user's needs.
Detailed Photos
Related Products
The advantages
What's the advantages to choose PC series hammer crusher?
1. With large crushing ration, heavy hammer crusher feeding granularity is large and discharge granularity is small. It could reduce the crushing stage and can save some equipment investment.
2. The heavy hammer crusher integrates coarse crushing and shaping functions when crushing stone. It does not need to go through the secondary crushing and shaping process.
3. With triple crushing force, the hammer head hits the material, the material hits the impact plate at high speed, and the stone rebounded by the impact plate hits the material hit by the hammer head. So PC hammer crusher can be more productive and energy-saving.
4. The heavy hammer crusher adopts a large blow bar to replace the hammer head of the original light hammer crusher. After optimized design, the kinetic energy is greater and the service life is longer.
Our company has designed and manufactured hammer crushers for more than 20 years. The product structure is advanced, the performance is reliable, the work is stable, and the energy consumption is low. In addition, the price of the hammer crusher produced by our company is reasonable, and a series of products have been formed, which are welcomed by users at home and abroad.
Product Parameters
The hammer crusher is one of the most common limestone stone crushers. There are many models of PC type hammer crusher, among which the most popular models are PC400x600, PC600x800 and high capacity model like PC1413...

Model	Hammerhead quantity	Input size(mm)	Output Size(mm)	Capacity(t/h)	Power(kw)
HC400×300	16	<100	<15	5-10	11
HC350×500	20	<100	<15	8-15	18.5
HC600×400	20	<220	<15	10-25	22

Model	Inlet door size(mm)	Max feed size (mm)	Discharge size(mm)	Running speed(r/min)	Power(kw)	Capacity (t/h)	Dimension(mm)
PC850	850x650	500	≤	585	55-4P	10-80	1450*1780*1685
PC1011	1020*660	600	≤100	585	75KW-4P	60-120	1600*1960*1870
PC1211	1220*750	700	<100	520	90KW-4P	80-150	1800*2130*2020
PC1212	1220*840	700	<100	520	90KW-4P	80-150	1896*2130*2020
PC1312	1320*845	700	≤100	520	110KW-4P	100-180	1896*2230*2190
PC1412	1420*845	700	≤100	520	132KW-4P	100-180	1900*2330*2190
PC1612	1620*845	320	≤100	650	90KW-4P*2pcs	120-240	1900*2530*2190
PC1413	1420*1040	800	≤100	500	75KW-4P*2pcs	100-220	2200*2450*2490
PC1414	1420*1050	800	<100	500	75KW-4P*2pcs	100-230	2200*2450*2675
PC1614	1620*1050	800	≤100	500	90KW-4P*2pcs	120-240	2220*2650*2675
PC1814	1820*1050	800	≤100	500	110KW-4P*2pcs	150-320	2220*2850*2675
PC2014	2020*1050	800	≤100	500	160KW-4P*2pcs	150-400	2290*2982*2675
PCH1616	1620*1150	800	≤120	550	132KW-4P*2pcs	150-350	2480*2855*2955
PCH1816	1820*1150	800	≤120	550	160KW-4P*2pcs	180-400	2480*3055*2955
PCH2016	2020*1150	800	≤120	550	220KW-4P*2pcs	220-500	2480*3255*2955
PCH2218	2220*1100	800	≤140	550	250KW-4P*2pcs	250-600	2710*3580*3100
PCH2620	2620*1350	800	≤200	450	315KW-4P*2pcs	550-780	3310*4580*3900
PCH2630	3030*1400	1200	≤200	390	900KW-6P*2pcs	1800-2500	4800*5370*5460

In order to overcome the impact of the environment on the work, we can also install crushers, feeders, conveyor belts and other equipment on the axle to make a mobile crushing production line, which not only solves the problem for customers but also improves the efficiency of their production lines.About us
Qingdao WL Heavy Industry is a large-scale enterprise specializing in R&D and manufacturing, with a plant area of 70 acres. The equipment provided by our factory includes: crushing and screening equipment, mobile sand making equipment and other mining machinery.
Our company is located in Qingdao City, Shandong Province of CHINA .
Our company's main products include mobile crushing stations and various jaw crushers, hammer crushers, cone glass crushers, impact crushers, sand making machines and other crushing and sand making equipment, as well as concrete equipment such as concrete mixing pumps, hydraulic feeders and other equipment
Our equipment is widely used in mining, construction, chemical industry, metallurgy, transportation, water conservancy and other industries.
FAQ
1. Are you a manufacturing?
We are a factory, established in 2001.
2. How long is your delivery time?
10-30 days, if we have the machine in the stock will provide to you with 10 days , if customizd machine will take 15--30days.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
1 year, we have spare parts in the stock can delivery to you within 3days.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
6. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
7.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
8. Installation:
If the buyer ask Hongwan company to send the technicians to guard to install the machines in the site, the buyer should take all the charges for the technicians and pay the salary.
