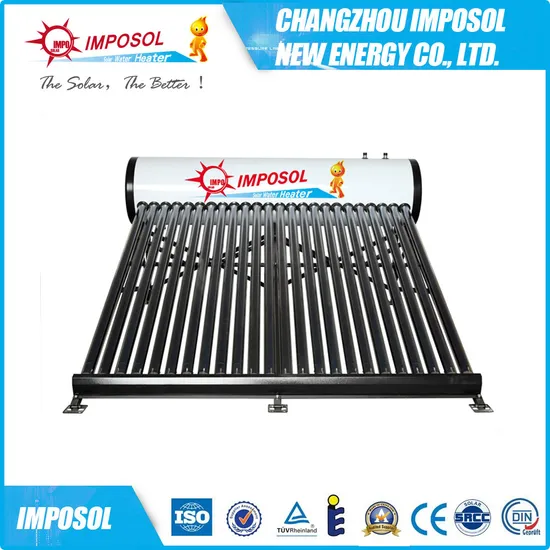

Home Solar Systems Solar Water Heater
Basic Info.
Model NO.
IPJG
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Tank Insulation
Certification
CE, ISO9001, CCC
Inner Tank
316L
Tube Quantity
30
Efficiency
300W/M2
Absorption Coefficient
>95%
Warranty
8 Years
Tube Size
58*1800
Thickness of Inner Tank
1.2mm
Transport Package
One Set/ Carton
Specification
Stainless steel
Trademark
Imposol
Origin
Jiangsu, China
HS Code
8419191000
Production Capacity
7000 Set/Month
Product Description
home solar systems solar water heater| Model | Light Area(m2) | Vacuum Tube | Capacity (Liters) | 20GP/40HQ Loading Qty | ||
| Ø(mm) | L(mm) | NO. | ||||
| IPJG 100 GS | 1.4 | 58 | 1800 | 10 | 100 | 71/172 |
| IPJG 150 GS | 2.1 | 58 | 1800 | 15 | 150 | 52/125 |
| IPJG 200 GS | 2.8 | 58 | 1800 | 20 | 200 | 39/96 |
| IPJG 250 GS | 3.5 | 58 | 1800 | 25 | 250 | 33/80 |
| IPJG 300 GS | 4.2 | 58 | 1800 | 30 | 300 | 28/68 |
| IPJG 400 GS | 5.6 | 58 | 1800 | 40 | 400 | 21/52 |
| IPJG 80 GS | 1.12 | 58 | 1800 | 8 | 80 | 80/194 |
| IPJG 120 GS | 1.68 | 58 | 1800 | 12 | 120 | 62/150 |
| IPJG 160 GS | 2.24 | 58 | 1800 | 16 | 160 | 48/116 |
| IPJG 180 GS | 2.52 | 58 | 1800 | 18 | 180 | 43/105 |
| IPJG 240 GS | 3.36 | 58 | 1800 | 24 | 240 | 34/82 |
| IPJG 360 GS | 5.04 | 58 | 1800 | 36 | 360 | 23/57 |
Inner Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , laser welding technology .
Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .
Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
58mm Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent
Optional accessories :
Aluminum component reflectors
Electrical heater
Magnesium anode rod
Assistant tank - Cold water filling tank
Solar Controller
