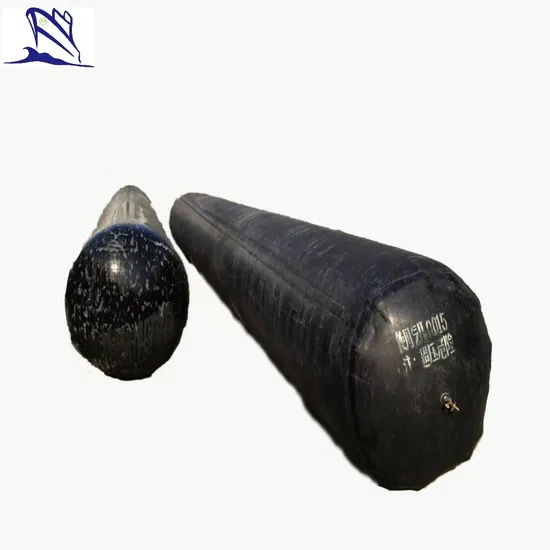

Easy-Operation Marine Rubber Lifting Airbag 7 Layers

Product Description

Product Description

SIZE RANGE:(AIRBAG SIZE DEPEND ON SHIP SIZE)
DIAMETER(D):	FROM 0.6M TO 2.8M
EFECTIVE LENGTH(EL):	FROM 5.0 TO 28.0M
TOTAL LENGTH(TL):	FROM 7.0M TO 31.0M
STANDARD NUMBER OF LAYERS:	USUALLY 3-12LAYERS

Guaranteed Working Pressure
Type	D=0.8m	D=1.0m	D=1.2m	D=1.5m	D=1.8m	D=2.0m
FL3 layers	0.13Mpa	0.10Mpa	0.09Mpa	0.07Mpa	0.06Mpa	0.05Mpa
FL4 layers	0.17Mpa	0.13Mpa	0.11Mpa	0.09Mpa	0.08Mpa	0.07Mpa
FL5 layers	0.21Mpa	0.17Mpa	0.14Mpa	0.11Mpa	0.09Mpa	0.08Mpa
FL6 layers	0.25Mpa	0.20Mpa	0.17Mpa	0.13Mpa	0.11Mpa	0.10Mpa
FL7 layers	0.29Mpa	0.23Mpa	0.20Mpa	0.15Mpa	0.13Mpa	0.12Mpa
FL8 layers	0.33Mpa	0.26Mpa	0.23Mpa	0.17Mpa	0.15Mpa	0.14Mpa
FL9 layers	0.37Mpa	0.29Mpa	0.26Mpa	0.19Mpa	0.17Mpa	0.16Mpa
FL10 layers	0.41Mpa	0.32Mpa	0.29Mpa	0.21Mpa	0.19Mpa	0.18Mpa

Company Profile
Our Services Being the Shipyard′s Branch Representative, we, Hangzhou Taihang Technology Import&Export Co., Ltd, have been established with the support of our NINGBO ZHENHE SHIPYARD. Meanwhile we have our own factory with laser cutting machine to provide CKD kits.
Our Service includes:
1. New Vessel Building(Catamaran, Landing Craft, Barge&Tugboat, Supply Vessels. etc)
2. Marine Equipment and Parts Supply (Deck equipment, Shafting, Rudder system, Thruster, Auxiliary equipment, Outfitting Equipment, Electrical Equipment, Mooring equipment, Materials, Lifting and Rigging, and various auxiliary Equipment and spare parts, etc. )
3. Laser Cutting services and One-stop services(1. Provide all material and fittings ---pre-cut steel, welding material, steel pipes, outfittings, equipment, everything you need. 2. Focusing on providing CKD service for over years, such as Ferry, Passenger Boat, Floating Dry Dock, Landing Craft, Deck Barge, Bouy Laying Vessel, Catamaran and so on. )
4. Professional Technical Support from Pre-sale to After-sale. (Additional we have our own teams with technicals and designers who have worked in marine for over 15years)
5. Inspection Capacity for ship′s condition, factories, products. (Commissioned by our clients, our chief engineer have been inspected several ships condition, inspected the machines, inspected the factories to make sure all those are good. )
We insist on doing everything seriously, and continuously improve and enhance our team′s capabilities and services. In order to meet your needs, our team ready to go all out!
ONCE YOU SELECTED, WE WANT TO BE YOUR PARTNER FOREVER!

Our Advantages
