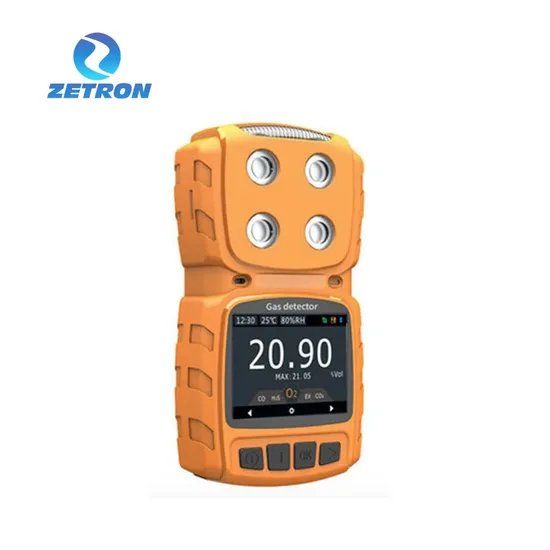

Ms104K Best Selling 4-in-1 Portable Gas Detector Lel Co O2 H2s Mercaptans Gas Detector Diffusion Type with Multi Channel Display

Product Description

MS104K Best Selling 4-in-1 Portable Gas Detector LEL CO O2 H2S Mercaptans Gas Detector Diffusion Type with Multi Channel Display
It can be used in: rapid detection of a variety of gas concentration and measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will emit sound & light vibration as alarm. Adopted 2.31-inch high-definition color screen for real-time display, adopted the gas sensors of industrially well-known brands. The main detection principles include: electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoionization, and so on. Advanced electric circuit design, mature kernel algorithm processing, unique external appearance design, had achieved a number of patents about the software works, external appearance, and so on. Suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space. The purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas. The types of gases for detection are more than 500 types.
Specification

Gases to be detected	Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.
Application scenarios	All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%, 0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life	Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error	≤±3% F.S (higher precision levels can be customized)
Linearity	≤±2%	Repeatability	≤±2%	Uncertainty	≤±2%
Response time	T90≤30 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ºC ~ + 70 ºC, humidity: ≤10 ~ 95% RH
Sample gas temperature	-40 ºC ~ + 70 ºC, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 400 ºC or higher.
Temperature and humidity measurement	Optional configuration: temperature at -40 ºC ~ + 70 ºC, accuracy level at 0.5 ºC; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply	3.7VDC, 3000mA high capacity rechargeable polymer battery
Display mode	2.31-inch high-definition color screen
Detection mode	Diffusion type measurement. The calibrated flow rate is 500 ml/minute.
Alarm mode	It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface	USB (charging and communication), optional: RS485 communication interface
Data storage	Standard configuration is the data storage capacity for 100, 000 entries
Protection level	IP65
Explosion-proof type	Intrinsically safe type
Explosion-proof mark	Exia II CT4 Ga
Exterior dimensions	130×68×34mm (L×W×H)
Weight	200g
Standard accessories	Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)
Optional items	Temperature and humidity measurement function, external gas sampling pump, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable)

DETECTABLE GASES Optional configuration: any combination of 1 ~ 6 types of gases, which can be simultaneously the combination of 18 or more types of gases.

Note: please call us to consult about other gases and other detection range which are not listed in the above table.
Gases	Range	Allowable Error	Minimum reading	Response time T90
Combustible gas ( EX )	0-100%LEL	<±3%(F.S)	0.1%LEL	≤10 seconds
Combustible gas ( EX )	0-100%Vol	<±3%(F.S)	0.1%Vol	≤10 seconds
Methane ( CH4 )	0-100%LEL	<±3%(F.S)	0.1%LEL	≤10 seconds
Methane ( CH4 )	0-100%Vol	<±3%(F.S)	0.1%Vol	≤10 seconds
Oxygen gas ( O2 )	0-30%Vol	<±3%(F.S)	0.01%Vol	≤10 seconds
Oxygen gas ( O2 )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤10 seconds
Oxygen gas ( O2 )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Nitrogen gas ( N2 )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤10 seconds
Carbon monoxide ( CO )	0-100ppm	<±3%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide ( CO )	0-1000ppm	<±3%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide ( CO )	0-2000ppm	<±3%(F.S)	0.1ppm	≤25 seconds
Carbon monoxide ( CO )	0-20000ppm	<±3%(F.S)	1ppm	≤25 seconds
Carbon monoxide ( CO )	0-100000ppm	<±3%(F.S)	1ppm	≤25 seconds
Carbon dioxide ( CO2 )	0-500ppm	<±3%(F.S)	1ppm	≤20 seconds
Carbon dioxide ( CO2 )	0-2000ppm	<±3%(F.S)	1ppm	≤20 seconds
Carbon dioxide ( CO2 )	0-5000ppm	<±3%(F.S)	1ppm	≤20 seconds
Carbon dioxide ( CO2 )	0-50000ppm	<±3%(F.S)	1ppm	≤30 seconds
Carbon dioxide ( CO2 )	0-20%Vol	<±3%(F.S)	0.01%Vol	≤30 seconds
Carbon dioxide ( CO2 )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤30 seconds
Formaldehyde ( CH2O )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Formaldehyde ( CH2O )	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Formaldehyde ( CH2O )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Formaldehyde ( CH2O )	0-5000ppm	<±3%(F.S)	1ppm	≤50 seconds
Ozone ( O3 )	0-1ppm	<±3%(F.S)	0.001ppm	≤20 seconds
Ozone ( O3 )	0-5ppm	<±3%(F.S)	0.001ppm	≤20 seconds
Ozone ( O3 )	0-50ppm	<±3%(F.S)	0.01ppm	≤20 seconds
Ozone ( O3 )	0-100ppm	<±3%(F.S)	0.01ppm	≤20 seconds
Ozone ( O3 )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Ozone ( O3 )	0-30000ppm	<±3%(F.S)	1ppm	≤30 seconds
Ozone ( O3 )	0-20mg/L	<±3%(F.S)	0.01mg/L	≤30 seconds
Ozone water ( O3 )	0-20mg/L	<±3%(F.S)	0.01mg/L	≤30 seconds
Hydrogen sulfide ( H2S )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Hydrogen sulfide ( H2S )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide ( H2S )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide ( H2S )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Hydrogen sulfide ( H2S )	0-10000ppm	<±3%(F.S)	1ppm	≤45 seconds
Sulfur dioxide ( SO2 )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-20ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-500ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-10000ppm	<±3%(F.S)	1ppm	≤30 seconds
Nitric oxide ( NO )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Nitric oxide ( NO )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Nitric oxide ( NO )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Nitric oxide ( NO )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Nitrogen dioxide ( NO2 )	0-10ppm	<±3%(F.S)	0.001ppm	≤25 seconds
Nitrogen dioxide ( NO2 )	0-100ppm	<±3%(F.S)	0.01ppm	≤25 seconds
Nitrogen dioxide ( NO2 )	0-1000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Nitrogen dioxide ( NO2 )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Nitrogen oxide ( NOX )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Nitrogen oxide ( NOX )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Nitrogen oxide ( NOX )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Nitrogen oxide ( NOX )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Chlorine gas ( CL2 )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Chlorine gas ( CL2 )	0-20ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Chlorine gas ( CL2 )	0-200ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Chlorine gas ( CL2 )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Ammonia gas ( NH3 )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ammonia gas ( NH3 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ammonia gas ( NH3 )	0-1000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Ammonia gas ( NH3 )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Ammonia gas ( NH3 )	0-100%LEL	<±3%(F.S)	0.1%LEL	≤10 seconds
Hydrogen gas ( H2 )	0-100%LEL	<±3%(F.S)	0.1%LEL	≤10 seconds
Hydrogen gas ( H2 )	0-1000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Hydrogen gas ( H2 )	0-20000ppm	<±3%(F.S)	1ppm	≤30 seconds
Hydrogen gas ( H2 )	0-40000ppm	<±3%(F.S)	1ppm	≤30 seconds
Hydrogen gas ( H2 )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤20 seconds
Helium gas ( He )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤20 seconds
Argon gas ( Ar )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤20 seconds
Xenon gas ( Xe )	0-100%Vol	<±3%(F.S)	0.01%Vol	≤20 seconds
Hydrogen cyanide ( HCN )	0-30ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen cyanide ( HCN )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride ( HCL )	0-20ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride ( HCL )	0-200ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Phosphorus hydride ( PH3 )	0-5 ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Phosphorus hydride ( PH3 )	0-25 ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Phosphorus hydride ( PH3 )	0-2000 ppm	<±3%(F.S)	1ppm	≤30 seconds
Chlorine dioxide ( CL O2 )	0-1ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Chlorine dioxide ( CL O2 )	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Chlorine dioxide ( CL O2 )	0-200ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide ( ETO )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide ( ETO )	0-1000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Ethylene oxide ( ETO )	0-100%LEL	<±3%(F.S)	1%LEL	≤30 seconds
Phosgene ( COCL2 )	0-1ppm	<±3%(F.S)	0.001ppm	≤20 seconds
Phosgene ( COCL2 )	0-50ppm	<±3%(F.S)	0.01ppm	≤20 seconds
Silane ( SiH4 )	0-1ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Silane ( SiH4 )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Fluorine gas ( F2 )	0-1ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Fluorine gas ( F2 )	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Fluorine gas ( F2 )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride ( HF )	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride ( HF )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen bromide ( HBr )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Diborane ( B2H6 )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Arseniuretted hydrogen ( AsH3 )	0-1ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Arseniuretted hydrogen ( AsH3 )	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Arseniuretted hydrogen ( AsH3 )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Germane ( GeH4 )	0-2ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Germane ( GeH4 )	0-20ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrazine ( N2H4 )	0-1ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Hydrazine ( N2H4 )	0-300ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Tetrahydrothiophene ( THT )	0-100mg/m3	<±3%(F.S)	0.01 mg/m3	≤60 seconds
Bromine gas ( Br2 )	0-10ppm	<±3%(F.S)	0.001ppm	≤30 seconds
Bromine gas ( Br2 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Bromine gas ( Br2 )	0-2000ppm	<±3%(F.S)	1ppm	≤30 seconds
Ethyne ( C2 H2 )	0-100%LEL	<±3%(F.S)	0.1%LEL	≤30 seconds
Ethyne ( C2 H2 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ethyne ( C2 H2 )	0-1000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Ethylene ( C2 H4 )	0-100%LEL	<±3%(F.S)	0.1%LEL	≤30 seconds
Ethylene ( C2 H4 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ethylene ( C2 H4 )	0-2000ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Acetaldehyde	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ethanol ( C2 H6O )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Ethanol ( C2 H6O )	0-2000ppm	<±3%(F.S)	1ppm	≤30 seconds
Methanol ( CH6O )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Methanol ( CH6O )	0-2000ppm	<±3%(F.S)	1ppm	≤30 seconds
Carbon disulfide ( CS2 )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Carbon disulfide ( CS2 )	0-5000ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile ( C3H3N )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile ( C3H3N )	0-2000ppm	<±3%(F.S)	1ppm	≤30 seconds
Methylamine ( CH5N )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Iodine gas ( I2 )	0-50ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Styrene ( C8 H8 )	0-200ppm	<±3%(F.S)	0.1ppm	≤30 seconds
Styrene ( C8 H8 )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Chloroethylene ( C2 H3CL )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Trichloroethylene ( C2 HCL3 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Tetrachlorethylene ( C2 CL4 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
( N2 O )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Nitrogen trifluoride ( NF3 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen peroxide ( H2 O2 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Methyl bromide ( CH3 Br )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Methyl bromide ( CH3 Br )	0-30000ppm	<±3%(F.S)	1ppm	≤30 seconds
Methyl bromide ( CH3 Br )	0-200g/m3	<±3%(F.S)	0.1g/m3	≤30 seconds
Sulfuryl fluoride ( SO2 F2 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Sulfuryl fluoride ( SO2 F2 )	0-5000ppm	<±3%(F.S)	1ppm	≤30 seconds
Sulfuryl fluoride ( SO2 F2 )	0-10000ppm	<±3%(F.S)	1ppm	≤30 seconds
Benzene ( C6 H6 )	0-10ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Benzene ( C6 H6 )	0-100ppm	<±3%(F.S)	0.01ppm	≤30 seconds
Benzene ( C6 H6 )	0-2000ppm	<±3%(F.S)	1ppm	≤30 seconds
