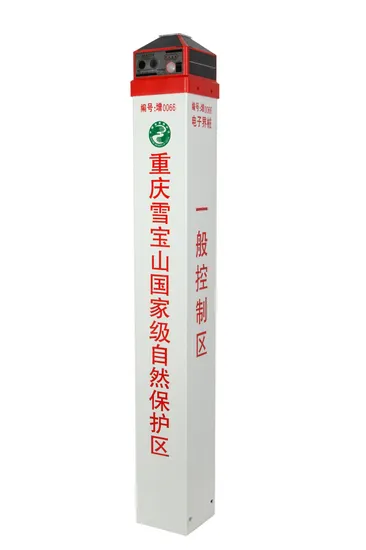

Yingka Electronic Boundary Post/Marker Monitoring System Forest Protection Area Intelligent Boundary Post Electronic Fence Infrared Sensing

Product Description

Product Description An electronic boundary marker is a type of electronic marker stake set up along the boundaries of nature reserves, ecological protection red lines, state-owned forest farms, and mining areas according to specific standards. This product integrates composite sensing and artificial intelligence (AI) technologies such as posture sensing, infrared intrusion detection, and visible light image sensing. It can accurately monitor phenomena such as boundary marker posture, human intrusion, and animal activity. The electronic boundary marker uses NB-IoT/4G wireless communication to connect to the cloud, enabling real-time data transmission from the site and timely monitoring of boundary posture, environmental conditions, human activities, and animal activities. The product features solar self-powering, cellular networking, and does not require cable laying or manual monitoring, making it highly flexible to deploy, easy to install, and accurate and reliable.
Detailed Photos Main Functions
Positioning
Real-time monitoring of positioning in an active state, with calculations to identify changes in location and trigger alarms for displacement.
Posture Recognition
Monitoring of posture angles during changes in posture, with calculations to identify the degree of posture change and trigger alarms for posture variation.
Vibration Recognition
Monitoring of vibration intensity during vibrations or external impacts, with calculations to assess the impact and trigger vibration alarms.
Intrusion Monitoring
Real-time monitoring and photographing of individuals entering the area for evidence collection, with counting and statistics.
AI Visual Intelligent Recognition
Support for the classification and counting of people, vehicles, and animals.
Environmental Monitoring
Real-time monitoring of temperature and humidity within the area.
Data Transmission
Support for NB-IoT/4G networking by operators (China Telecom, China Mobile, China Unicom, etc.) with bidirectional data communication with the cloud platform.
Product Parameters

Product Categories	basic type				standard type	Enhanced type	Flagship type
	economy type	basic type		Pro type
positioning	/				supports BeiDou and GPS positioning
smart monitoring	Dumping, displacement, vibration linkage alarm, attitude tilt angle monitoring range 0~90°, accuracy 0.1°
intrusion detection	/					To monitor and photograph humans, vehicles, and wildlife, with a horizontal field of view of 70° and a detection range of 5 meters
AI intelligent recognition	/					Supports recognition, classification, and counting of human, vehicle, terrestrial mammal, and bird targets
HD photography	/					200 megapixels, 1080P, JPEG format
environmental monitoring	/			Temperature monitoring: -40°C to +80°C, accuracy 1°; humidity monitoring: 0% to 100%, accuracy 1%
audio-visual alarm	/						Flashing light alarm, voice broadcasting, remote speaking
video recording	/						Monitor and record humans, vehicles, and animals; supports remote viewing and playback
remote communication	NB-IoT/4G				4G
power supply	powered by lithium battery	powered by lithium battery&solar-powered					mains power supply
operating temperature	-30ºC~+70ºC					-20ºC~+70ºC
protection class	IP65
material	fiberglass			durable metal materials
appearance	embedded		roof-mounted	embedded
dimensions	15cm*15cm*160cm			20cm*20cm*120cm

Certifications
Company Profile Chongqing Yingka Electronic Co., Ltd., established in 2007, is located in the Erlang Overseas Student Pioneer Park, Jiulongpo District, Chongqing, China. The company is dedicated to the research and development of wireless sensor networks and AI technology, equipment, and systems for various applications in forestry, scenic areas, and power sectors. These applications include forest fire prevention, forest pest control, wildlife monitoring, bird monitoring, and ecological environment monitoring. Yinka Electronics has successfully overcome key challenges such as long-term field power supply, wireless networking in the field, and reliable low-power sensing. The company has undertaken the "National IoT Application Demonstration Project" by the National Development and Reform Commission and has accumulated over 10 years of experience in forest fire prevention and environmental monitoring applications.
Yinka Electronics is a provider of IoT application solutions for forest fire prevention and environmental monitoring in outdoor environments. It has provided applications and technical services to over 100 scenic areas, forestry, and power units across China.

Our Advantages 1. 16 years of experience in the production of IoT sensing devices
2. Experts in the IoT ecosystem industry
3. Collaborate with universities to establish a research team for expert academician workstations
4. Professional business personnel can respond online at any time
5. Comprehensive after-sales service
6. Customizable development and fast delivery
After Sales Service Online guidance and video tutorials for overseas buyers, with 24-hour online response
FAQ Q1: Are you manufacturer?A: (yes)Q2: What is the delivery cycle?
A: Usually one monthQ3: How do you ship the goods and how long does it take arrive?A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.Q4: Can I have a sample order?A:Yes,we welcome sample order to test and check quality.Q5: Do you offer OEM service?A: Yes, we can design the things according to your request.
