Online Digital Ec Conductivity Probe for Aquaculture Fish Farming Iot Solution

Product Description

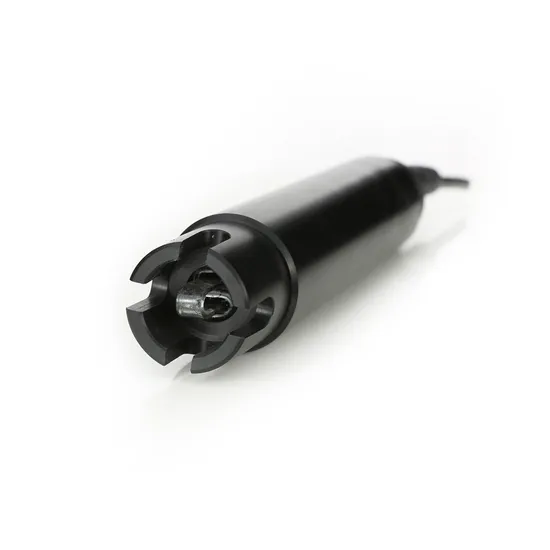

BH-485-DD Digital Conductivity Sensor
Product Description BH-485 series of online conductivity electrode, in the interior of the electrodes achieve the automatic temperature compensation, digital signal conversion and other functions. With rapid response, low maintenance cost, real-time online measurement characters etc.The electrode using standard Modbus RTU (485) communication protocol, 24V DC power supply, four wire mode can very convenient access to sensor networks.
Detailed Photos

Product Parameters Features
·Can work stably for a long time
·Built in temperature sensor, real-time temperature compensation
·RS485 signal output, strong anti-interference ability, the output range of up to 500m
·Using the standard Modbus RTU (485) communication protocol
·The operation is simple, the electrode parameters can be achieved by remote settings, remote calibration of electrode
·24V DC power supply.
Technical Indexes

Model	BH-485-DD
Parameter measurement	conductivity, temperature
Measure range	Conductivity: 0-2000us/cm Temperature: (0~50.0)ºC
Accuracy	Conductivity: ±20 us/cm Temperature: ±0.5ºC
Reaction time	<60S
Resolution	Conductivity: 1us/cm Temperature: 0.1ºC
Power supply	12V-24V DC
Power dissipation	1W
Communication mode	RS485(Modbus RTU)
Cable length	5 meters, can be ODM depend on user's requirements
Installation	Sinking type, pipeline, circulation type etc.
Overall size	230mm×30mm
Housing material	ABS

Certifications
Packaging & Shipping
Company Profile
FAQ 1.Who are we?
BOQU instrument focus on R&D and production of Water Quality analyzer&sensor since 2007. Our mission is To be brightest eye for water quality monitoring on earth.
★ Employees: 200+ people
★ Annual growth rate: 35%
★ R&D experiences: 20+ years
★ Technical patents: 50+
★ Annual production quantities: 150,000pcs
★ Cooperation companies: Boehringer Ingelheim, CM, Roche
★ Main Industries: Power plant, Water treatment plant, Drinking water, Pharmaceutical, Fish farming, Swimming pool.
