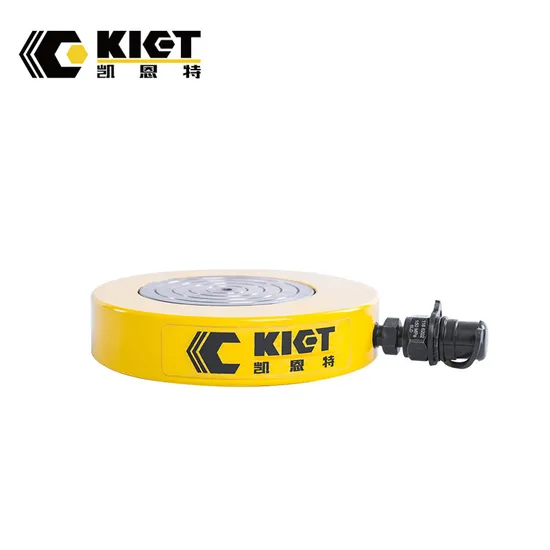

Stc Series Ultra High Pressure Ultra Low Height Hydraulic Cylinder

Product Description

Company Profile

Jiangsu Canete Machinery Manufacturing Co., Ltd. is a national high-tech enterprise and manufacturer of hydraulic devices special for large-scale heavy-duty jacking and lifting field. Integrating system design, product R & D, production, marketing and import & export, KIET provides a full range of high quality hydraulic tools and professional comprehensive solutions for customers.
Relying on advanced scientific technology in Europe and America and gathering elite talents at home and abroad, KIET focuses on solving major engineering problems in the fields of heavy load, precise control, multi-logic actions, multi-point control, etc.
After more than 20 years development, KIET has established a rigorous production and operation system and a perfect quality control system. Through continuous innovations, serialized products and solutions are gradually formed in the fields of multi-point synchronous lifting,pushing,hoisting, translation, tensioning, weighing of asymmetric large components, space posture adjustment, and intelligent walking of large equipment and components. KIET has won praise from domestic and foreign customers for its high-quality products and excellent services. At present, KIET's business has spread to more than 100 countries and regions in the world, covering roads and bridges, construction, petrochemicals, metallurgy, power, mining, ships, offshore engineering field.
Adhering to the core concept of "Ingenuity for manufacturing, service for the world", KIET continues to expand scientific research strength, forge ahead, strive for first-class, and provide customers with safe, reliable and efficient equipment and service.
Product Description
Introduction
Ultra high pressure ultra-low height hydraulic cylinder is suitable for narrow space, e.g. shipbuilding plant marine adjustment, lifting of steam turbine maintenance in power plant etc.
Features
1. Maximum working pressure: 1500bar.
2. The top end is provided with an elastic sealing piece to avoid the impurity into the cylinder, extending cylinder life.
3. Overload test pressure is 1.5 times higher than the rated working pressure.
4. Top finite overflow port, When the plunger over stroke, automatic overflow, safe and convenient.
5. Compared with the same kind cylinder, the same closed height, there is a longer lift stroke.
6. G1/4" coupler and dust cap included on all models.
Product Parameters

MODEL	CAPACITY (T)	MAX. WORKING PRESSURE (MPA)	CLOSED HEIGHT (MM)	STROKE (MM)	EFFECTIVE AREA (CM²)	OIL CAPACITY (CM³)	OUTSIDE DIAMETER (MM)	WEIGHT (KGS)
KET-STC-0510	5	150	30	10	3.46	3.5	60	0.17
KET-STC-01010	10	150	30	10	7.06	7.1	70	1.1
KET-STC-02510	25	150	30	10	17.34	17.3	90	1.5
KET-STC-05010	50	150	30	10	38.46	38.5	118	2.6
KET-STC-10010	100	150	33	10	69.36	69.4	152	4.3
KET-STC-15010	150	150	34	10	105.62	105.6	180	6.8
KET-STC-20010	200	150	35	10	136.77	136.8	204	9
