Zmde Advanced CNC Steel Plate Processing H Beam Drilling System

Product Description

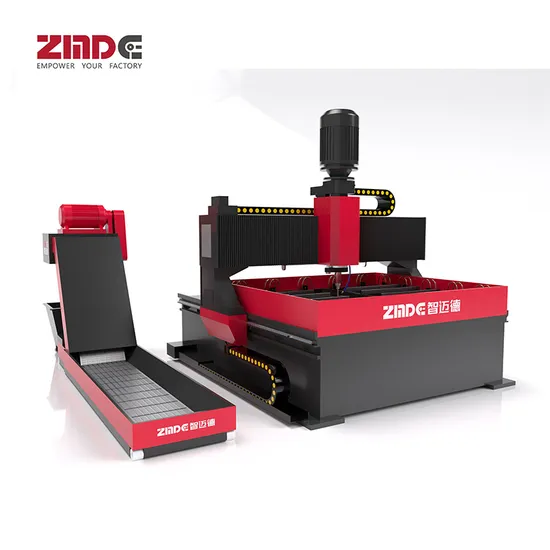

ZMDE Precision CNC Steel Plate Processing System H Beam Driller

>Cost-effective equipment <
1. Built with solid materials, the Precision CNC Steel Plate Processing System boasts a low failure rate, significantly reducing maintenance costs. It features industry-renowned brands for components like ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters.
2. The CRT display offers automatic chip removal, cutting down on the expenses associated with manual cleaning time.
3. This high-precision equipment ensures a high qualification rate of workpieces, ultimately lowering the cost of consumables.
>Simple operation, High productivity <
1. User-friendly human-machine interface that is clear and visual, capable of generating automatic machining programs.
2. Controlled by advanced CNC and PLC systems, ensuring accurate positioning.
3. Workpieces are clamped using hydraulic clamps and operated by a convenient foot switch, making the process labor-saving.
4. Equipped with 12 fast hydraulic clamps distributed around the table, allowing four groups of workpieces to be clamped simultaneously.
5. Small workpieces can be clamped at the four corners of the working table, drastically shortening the production preparation cycle and enhancing production efficiency.
6. Small workpieces clamped at the table's four corners significantly shorten the production preparation period and boost production efficiency.
> Guaranteed quality, wide range of applications <
1. Essential components such as the gantry, column, and table are constructed from solid materials, with the main machine weighing up to 6300kg.
2. Versatile across various industries, positioning it as the core equipment for connecting plate processing.
3. Capable of handling a wide range of drilling diameters, from 12mm to 50mm.
> Suitable for various production scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Supports the production of small batches of multi-species workpieces, capable of processing different plate shapes such as rectangular, round flange, and polygonal. It can handle two or four different plate specifications simultaneously.
3. Facilitates the production of multiple layers of thinner sheets in stacks, capable of drilling holes in stacks up to 100mm thick.
4. Utilizes upper computer software for automatic processing of start and end points, enabling the drilling of through holes, blind holes, step holes, and hole-end chamfering.
> Production process automation <
1. Features line board integration with a high degree of automation, automatically positioning according to the drilling program.
2. Adjusts the optimal feeding volume based on different hole diameters.
3. Capable of automatic and continuous processing of large hole diameters and one-time processing and molding.
4. Equipped with an automatic chip removal function.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
