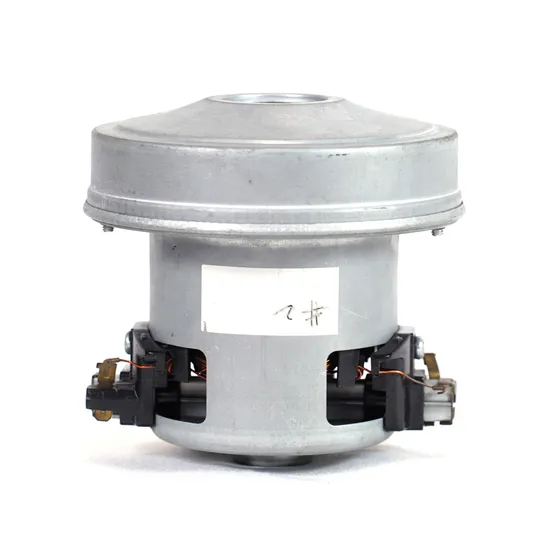

1200W/1600W/2200W Home Appliance Parts Electric Dry and Wet Vacuum Cleaner AC Brushed and Brushless Motor

Product Description

1200W/1600W/2200W Home Appliance Parts Electric Dry and Wet Vacuum Cleaner AC Brushed and Brushless Motor
Typical Market:
Products for industry and commerce uses motor Products for medical appliance
Application:
Household appliances motor Industrial equipment motor Vacuum cleaner motor

Rated Voltage	220-240V
Rated Frequency	50-60Hz
Input power range	1000-2000+-5%
Max vacuum degree	>=24.5KPa
Max Airflow	2.7m3/min
Max suction power	400w
Max effciency	>=43%
Speed of full open	32000rpm
Direction of rotation	CCW
Insulation class	single CL F
Dielectrics strength	1800v/s <=5mA
Spark	<=class 2
Noise	<=102dB
Vibration	<=15mm/s

Environmental Requirement
Cooling method: Natural cooling or air cooling
Work environment: No dust, oil mist and corrosive gas
Work temperature :-10ºC~+45 ºC
Humidity: <80%RH, noncondensable, and unfrosted
Storage: -20 ºC~+105 ºC, protected from dust in intact packages

Typical model load performance
Type	Voltage Range(V)	Rated Voltage (V)	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	P(W)	Max Eff.(%)
BLW130718-01	210-230/AC	220/AC	25000	0.9	18000	6.2	800	>15.8
BLW130715-01	210-240/AC	230/AC	21000	0.7	15000	4.6	600	>12.5
BLW130618-01	90-120/AC	110/AC	25000	1.3	18000	12.3	800	>15.8

ABOUT US
Greatup was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development,our products is enlarged to BLDC motors ,capacitor motors ,synchronous motors,stepping motors,servo motors, and PMDC motors.Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
To design the lastest technology motors and meet our customers requirments,we have the very capable R&D team,to ensure our products quality ,we have very strict manage system for our production department & QC department,to make our cost lower,we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland,we set up branch office in Australia since 2017 with exprienced consultant to support the business ,which will bring more customers to get know of us.
We will keep doing our job,move forward step by step to make our business area wider and brighter.
Our company FAQ for you
(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
