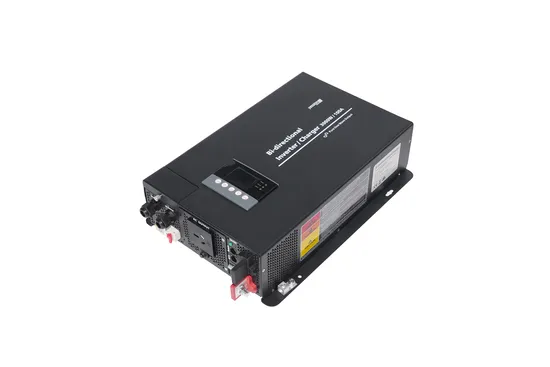

Bi-Directional Power Inverter with Charger 3000W 12VDC to 110 VAC Charging Current 100A
| US$220.00-230.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
LF-BIC01301001
Brand
Customized
Weight
7.4kg
Peak Power
6000W
Max Charging Current
100A
Charger Current Setting
25-100A
Charging Control
Bulk / Absorption / Float / Recharge
Output Frequency
50/60Hz
Warrenty
2 Years
Efficiency
90%
OEM
Accepted
AC Output Current
25A
Display
LED Digital
Output Waveform
Pure Sine Wave
Battery Type
Gel, Flooded, AGM, Lithium, Use, Power Supply
Operating Temperature
0°c - 50°c
Storage Temperature
-20°c to 60°c (-4°f to 140°f)
Transport Package
1PC/Box; 2boxes/CTN
Specification
432.9mm X 287mm X 110mm
Trademark
Yassion
Origin
Zhejiang, China
HS Code
8504403090
Production Capacity
6000 PCS / Month
Product Description
Product Description The Sinewave Inverter-Charger includes the items listed below.Inverter-Charger base unit Owner's manual Detailed Photos
Product Parameters
| SPECIFICATIONS | 12V model | 24V model | 48V model | 12V model | 24V model | 48V model |
| 120V model | 230V model | |||||
| Inverter | ||||||
| Continuous AC Output Power | 3000W | |||||
| AC Output Current | 25A max | 13A max | ||||
| AC Surge Power (Peak) | 6000W | |||||
| AC Output Voltage/Frequency | 100/110/120 VAC (can be set by user) 50 / 60 Hz(can be set by user) | 220/230/240 VAC (can be set by user) 50 / 60 Hz(can be set by user) | ||||
| AC Output Waveform(THD) | 5% max ,2.5% typical | |||||
| Nominal DC Input Voltage | 12.5 VDC | 25 VDC | 50 VDC | 12.5 VDC | 25 VDC | 50 VDC |
| DC Input Voltage operating range | 10.5 - 16.0 VDC | 21 - 32 VDC | 42 - 63 VDC | 10.5 - 16.0 VDC | 21 - 32 VDC | 42 - 63 VDC |
| Efficiency | 90% typical | 94% typical | 90% typical | 94% typical | ||
| AC Transfer Switch | ||||||
| Nominal AC transfer time - utility to inverter | <30ms (delayed as required by voltage decay of active load) | |||||
| Nominal AC transfer time - inverter to utility | <20ms | |||||
| Transfer Relay Rating | 30A | 16A | ||||
| AC Input Source Setting | 15, 20, 30A | 10, 13, 16A | ||||
| AC Output Port 1 (AC Socket) | GFCI(20A) | EU: CEE 7/4 (16A) | ||||
| UK: BS1363 (13A) | ||||||
| AU: AS/NZS 3112 (10A) | ||||||
| AC Output Port 2 (Hard Wire Connector) | 30A max | 16A max | ||||
| Display | ||||||
| Display Panel Port | RJ12 | |||||
| Inverter Mode | Input Voltage, Output Power,Output Voltage | |||||
| Charger Mode | Status & Battery voltage,Input Power,Current | |||||
| CANBUS Control | By CANBUS | |||||
| Remote Panel | By Remote | |||||
| Charger | ||||||
| Charger input operating range (full power) | 95-135Vac (105-130Vac) | 190-270 Vac (210-260Vac) | ||||
| Charging Voltage Range | 13.5 - 14.8 VDC | 27-29.6V | 54-59.2V | 13.5 - 14.8 VDC | 27-29.6V | 54-59.2V |
| Charger Current (max) | 100A | 50A | 25A | 100A | 50A | 25A |
| Charger Current Setting | 25-100A | 10-50A | 5-25A | 20-100A | 10-50A | 5-25A |
| Battery Type | Gel, Flooded, AGM, Lithium, use, Power Supply | |||||
| Charge Control | Bulk / Absorption / Float / Recharge | |||||
| Maintenance Recharge Cycle | 7 days | |||||
| Efficiency | 90% typical | 93% typical | 91% typical | 93% typical | ||
| Safety and Environmental | ||||||
| Approval | cETLus | CE | ||||
| Safety | UL 458, CSA C22.2 No. 107.2-01 | EN 60204-1 & IEC 61558-2-16 | ||||
| EMC | FCC Part 15 Class B | EN 62040-2 Category C2 | ||||
| Operating Temperature | 0°C to 50°C | |||||
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |||||
| Relative Humidity | 5-90% noncondensing | |||||
| Operating Altitude | Up to 9,843ft (3000m) above sea level | |||||
| Weights and Dimensions | ||||||
| Weights | 7.4kg | |||||
| Dimensions L X W X H | 432.9mm X 287mm X 110mm | |||||
