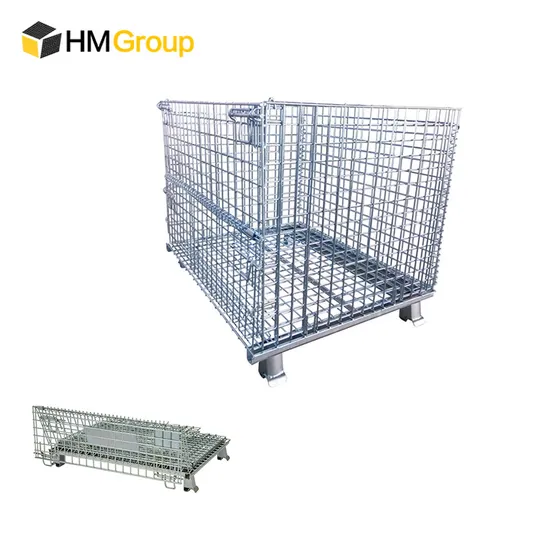

Industrial Rigid Folding Stackable Durable Storage Steel Wire Mesh Containers

Product Description

Other kinds of industrial wire mesh containers
Specification of rigid folding wire mesh container

Same design, different sizes
Model No.	Exterior Dimension	Wire Guage	Grid Size	Loading Capacity	Loaded in 1x40'GP
	LxWxH(mm)	mm	mm	kg	sets
HM-HD001	1030x840x850	6	50x50	1300	470
HM-HD002	1230x1040x890	6.2	50x50	1700	320
HM-HD003	1030x840x500	6	50x50	800	470
HM-HD004	1030x840x850	6	50x50	800	470
HM-HD005	1230x1040x900	6.2	50x50	1200	320
Material	Mild steel Q235
Application area	Warehouse, logistic, recycling industry
Finish	Zinc/hot dip galvanized/powder coating
Remark	Costomized or OEM support
Main features	1.Collapsible-save space when not in use,ideal for return journeys 2.Standard half-hinged gate access 3.Long lasting,economical alternative to disposable packing 4.Open wire mesh design allows for full visibility for inventory checks, ventilation and cleaness.

Industrial rigid folding stackable durable storage steel wire mesh containers
Square-stack leg - secure stacking; Half fold-down gate - easy access; Connected by helix
Details and available designs of storage steel wire mesh containers
Application, packaging & loading of durable wire mesh containers
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack 3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive
chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
