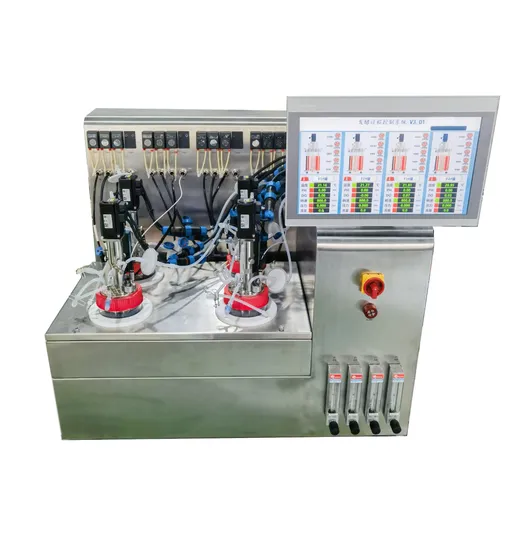

Microaerobic Fermentation Glass Fermenter with Clamshell Peristaltic Pump

Product Description

Product Parameters

Parameter	Description
Total volume	0.5L,1L,2L,5L,10L,20L etc.
Working volume	50%~70%
Tank	Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover
Stirring system	Mechanical drive(GJ type) or Magnetic drive(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Stir speed: 50~1000rpm/50-500rpm
Sterilization	Off-site sterilization (Autoclave)
Gas control	Control by rotor meter, air flow 1-2vvm.
Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoamer by peristaltic pump
Temperature control	Auto-control, electric heating range water source add 5ºC to 70ºC
PH control	PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.
DO control	0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling	Manual sampling
Control parameters	15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
Optional configuration	Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc.,

Product Description
Product DescriptionApplicable to various specifications can be high temperature autoclaved glass tank working volume 0.5L / 1L / 2L / 3L / 5L / 7L /10LThe 316 L stainless steel part of the tank all adopts laser welding and electropolishing, mirror finish <0.4umStandardized universal interface, which can be replaced at willStable air tightness, convenient and quick disassembly mechanism, easy for laboratory operationAdapt to multi-brand monitoring equipment, strong adaptabilitySupport the production and process research and development of high density, microaerobic and anaerobic fermentation secretion products:Small area, save valuable laboratory space.
Product advantagesSiemens S7 series original processor15 inch IoT touch screen with adjustable screen angle;High-precision clamshell peristaltic pump and the original imported partsThe peristaltic pump function can be freely defined as acid,
alkali, defoaming and feedingFlexible process control batch, flow addition, continuous or flow culture;The fifth generation fermentation intelligent control software can be directly connected to the cloud and remotely controlled through computers and apps;Bus communication, capable of up to 10 connections for control
Built in control software, capable of implementing online monitoring, recording, tracking and other functionsCan be connected to an external computer to use data analysis software for multi batch data comparisonDetailed Photos
Company Profile
Zhenjiang Boao Intelligent Equipment Co., Ltd.Address: No. 898 Yongheng Road, Economic Development Zone, Yangzhong City, Jiangsu Province
Established in 2010 and located in the Economic Development Zone of Yangzhong City, Zhenjiang, Zhenjiang Boao Intelligent Equipment Co., Ltd. is a high-tech enterprise specializing in the design, manufacturing, and installation of intelligent bio-fermentation systems and the development of automated control systems. Our products and services span various fields including bio-pharmaceuticals, food processing, agriculture, and environmental protection, focusing on providing customers with efficient, energy-saving, and environmentally friendly bio-fermentation solutions.
The company covers an area of over 30,000 square meters, equipped with modern workshops and advanced production equipment, with production capabilities ranging from 10L to 500T. Our products not only meet the needs of the domestic market but are also successfully exported to many countries and regions.
Business ScopeDesign, manufacturing, and installation of intelligent bio-fermentation systemsDevelopment of automated control systemsGeneral contracting services for bio-fermentation engineeringRelated technical consulting and services
Achievements and HonorsSince its establishment, Boao Intelligent Equipment Co., Ltd. has always adhered to scientific and technological innovation and quality management, obtaining multiple national patents and software copyrights. Our products and services have passed the ISO9001:2008 international quality system certification and have received multiple provincial scientific and technological progress awards.
Prospects for DevelopmentLooking forward, the company will continue to increase R&D investment and promote continuous innovation in products and technology. Our goal is to become a leading supplier of intelligent bio-fermentation equipment in China, providing customers with more comprehensive and efficient services, and jointly promoting the green development of the bio-fermentation industry
Packaging & Shipping
Packaging and Transportation
FAQ
Q1. Are you trading company or manufacturer?A: We are a professional manufacturer of Laboratory, industrial equipment, and we have our own factory. Q2. Do you provide samples? Is it free?A: Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost. Q3. Do you have warranty?A: Yes, we offer 1 year warranty for the spare part. Q4. How long is your delivery time?A: 1 week to 3 months. Depend on the size and quantity.
Q5. What is your terms of payment?•A: Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
