Reliable High Quality 50 Tonne Excavator with 51.5t Weight and 2550mm Arm

Product Description

Product Description

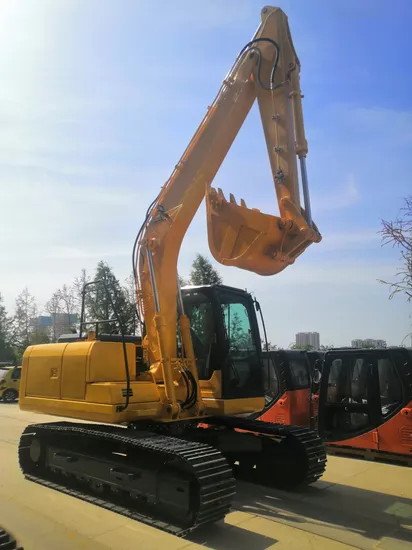

Large Excavator ME520
The ME520 is engineered for excellence, perfectly suited for demanding environments like mines, stockyards, and ports, where reliability is paramount.



Our excavator features a globally acclaimed hydraulic system, ensuring unparalleled reliability and longevity. This system is a testament to our commitment to quality engineering.

The ME520 boasts a robust structural design, with an expertly engineered working device and chassis, allowing it to endure the harshest working conditions with ease.

Step into our newly designed, spacious cabin, equipped with modern conveniences like AC, a radio, and a USB joint, all complemented by an expansive view for the operator's comfort and efficiency.
Detailed Photos
Product Parameters

Model			ME520.9
Bucket capacity (m3)			2.8
Operating weight (T)			47500/49500
Volume of fuel tank (L)			650
No.	Name	Item
1	Engine	Brand	6WG1X
		Rated power (kw/r/min)	300/1800
		Torque / speed
		Intake mode	Turbocharged
		Fuel system mode	Electronic injection
		Emission standard	EURO
2	Chassis	Drive mode	hydraulic
3	Main pump	Brand	InlineHP3V212D
		Rated pressure	37
		Flow	385×2
4	Swing motor	Brand	Inline HM5X130CHB×2
		Rated pressure	28.4
5	Travel motor	Brand	OK F100
		Rated pressure	37
6	Control valve	Brand	Inline HVME400
		Rated flow	400
		Brake form	Hydraulic
7	Hydraulic oil	Model and dosage	HM046/335
8	Chassis parts	Track form	/3-teeth
		Track width	600mm
		No. of track	(Each Side) 49/50
		Average grounding pressure(KPa)	72
		No. of track rollers	(Each Side) 9

Our Advantages
Quality Manufacturing
Jining MAX POWER Machinery Co., Ltd. offers a diverse range of excavators, from agile 3.5-ton models to powerful 70-ton giants. Our vast 20,000 square meter facility houses two advanced assembly lines and over 20 specialized manufacturing systems, supporting an impressive annual output of 3,000 versatile excavators and their variants.
Best Chinese ExcavatorMaxpower's high-caliber products and exceptional service have earned our brand a stellar reputation, thriving across the nation and exported to 50 countries, spanning Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
