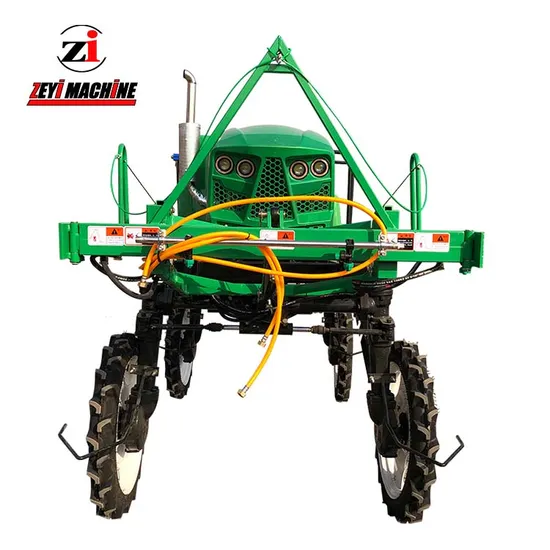

Self Propelled Type Diesel Engine Agriculture Boom Sprayer 3wpz-700

Product Description

Product Description

airframe size	full length(mm)	5350
		Full width(mm)	1870
		Full height(mm)	2370
		Wheelbase(mm)	2120
		Wheel distance(mm)	1500
		Effective ground clearance(mm)	1050
		Minimum ground clearance(mm)	870
		weight(kg)	1200
engine	appellation	Type 490
		Types	Vertical, four-cylinder, water-cooled, four-stroke, naturally aspirated
		Total exhaustL	2.24
		rated powerkwPS/rpm	38/2400
		Fuel tank capacityL	25
		Start way	Battery automatic
Walking department	Types of	4wsfour-wheel drive
		Operation method	Full hydraulic power steering
		Number of shift stages	3-step shift
		Walking speedkm/h	Mobile walking: 0-14 Spreading: 0-7
		BrakeFor parking brake	Pedal mechanical
		Tires	110/100/90 4PR
		battery	80B24R
medicine chest	Medicine box capacityL	700
		Way of stirring	Jet agitation
Spray pump	appellation	Gear pump
		Rotating speedrpm	600
		Water absorptionL/min	35-60
		Maximum pressureMPa	1.2
		Spraying pressureMPa	0.5-0.8
Prevent Device Division	Arm extension type	Double arm type, electric opening and closing, electric up and down
		Nozzle type	Conical nozzleMeasuring nozzle
		Nozzle number	Conical nozzle: 24
				Measuring nozzle2
		Effective spray rangem	15
		Nozzle height from the groundmm	500-1600
