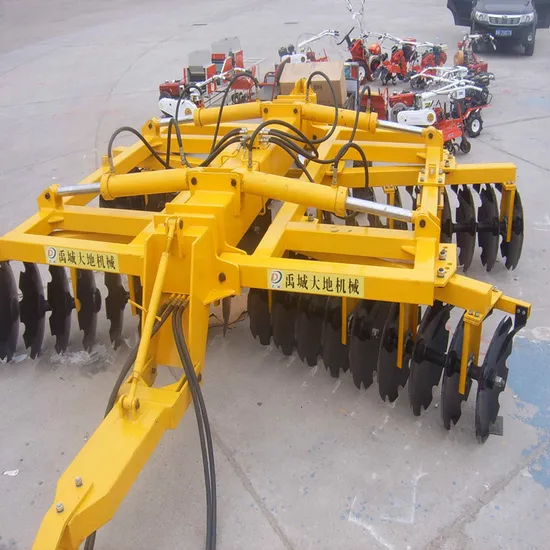

1bzdz Series Hydraullic Opposed Heavy-Duty Disc Harrow

Product Description

1BZDZ -6.2 Wing Folded Heavy-Duty Contraposition Hydraulic Wing Disc Harrow
1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
1BZDZ -6.2 wing-folded heavy-duty contraposition hydraulic disc harrow are constructed around a central robust mono frame , can be installed by 32-66 discs, divided into front and rear two gangs notched disc. It's suitable for destroying, sticky heavy soils, low wetland, straw, corn crop land or land area of high crop plow before stubble plowing. The harrows have 230mm and 240mm,270mm three varieties disc space for choices. Different disc spacing has different effect:230mm and 240mm disc spacing is suitable for multi-purpose,270mm disc spacing is suitable for deep coarse plow stubble plowing, or without the plow surface farming.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and chang directiong on the edge of fields.

Model	Unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4
Overall dimension	cm	480*200*134	482*244*134	532*288*134	532*332*134	582*376*134
Weight	kg	1050-1100	1250-1300	1380-1430	1500-1550	1650-1700
Working width	m	1.8	2	2.5	3	3.4
Working depth	cm	20
Blade spacing	mm	230
No of disc	pc	16	20	24	28	32
Dia.of disc	mm	660
Transport clearance	mm	>160
Productivity	ha/h	1.1	1.3	1.4	1.7	1.9
Matched power	kw	44-55	52.9-66.2	55-73.5	58.8-88	66.2-100
Linkage		Trailed
