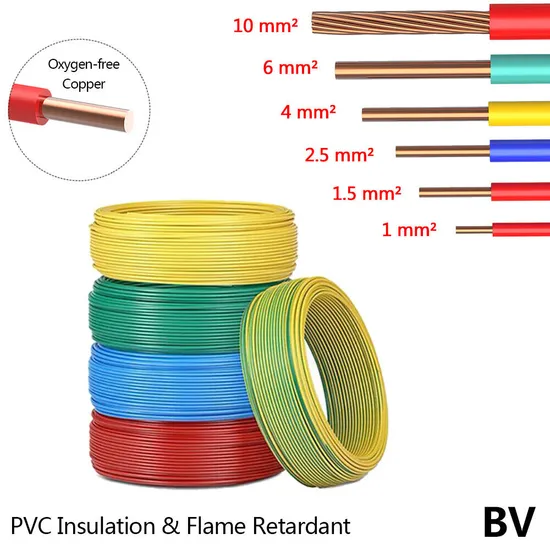

450/750V Flame Retardant Solid Fire Resistant Single Core Electrical Wires

Product Description

Product Description
Product model: PVC single core solid insulated wire / BV Wire / H07V-U
Number of cores: 1 core
Product specifications: 1.5-400mm²,
Product colour: Red, yellow, blue, green, black; other colors can be customized.
Rated voltage: 450/750V
The length of the whole plate: 90/95/100m (national standard full meter).
---------------------------------------------------------
Product model: PVC insulated single core wire (Flexible) / H07V-R
Number of cores: 1 core
Product specifications: 1.5-10mm²
Product colour: red, yellow, blue, green, black; other colors can be customized
Rated voltage: 450/750V
The length of the whole plate: 90/95/100m (national standard full meter)---------------------------------------------------------
Product model:PVC insulated single core flexible wire / BVR / H07V-K
Number of cores: 1 core
Product specifications: 1.0-35mm²
Product colour: Red, yellow, blue, green, black, brown ; other colors can be customized
Rated voltage: 450/750V
The length of the whole plate: 90/95/100m (national standard full meter)

Use characteristics: the long-term allowable working temperature of the cable core should not exceed 70ºC, BV-90 type should not exceed 90ºC, the short-term working temperature can be raised to 105ºC, the laying temperature of the cable should not be lower than 0ºC.
Allowable bending radius: when the cable outer diameter (D) is less than 25mm, the allowable bending radius of the cable should be not less than 4D; when the cable outer diameter (D) is 25mm and above, the allowable bending radius of the cable should be not less than 6D.
Product Parameters

Nominal section mm²	No. of Strands #/mm	Insulation Thickness mm	Overall Jacket Thickness mm	Approx. Wt. kg/km	Minimum insulation resistance at 70°C Ω·km
1.5	1/1.38	0.7	3.3	20.3	11.0
	7/0.52	0.7	3.5	21.6	10.0
2.5	1/1.78	0.8	3.9	31.6	10.0
	7/0.68	0.8	4.2	34.8	9.0
4	1/2.25	0.8	4.4	47.1	8.5
	7/0.85	0.8	4.8	50.3	7.7
6	1/2.76	0.8	4.9	65	7.0
	7/1.04	0.8	5.4	71.2	6.5
10	7/1.35	1.0	7.0	119	6.5
16	7/1.70	1.0	8.0	179	5.0
25	7/2.14	1.2	10.0	281	5.0
35	7/2.52	1.2	11.5	381	4.0
50	19/1.78	1.4	13.0	521	4.5
70	19/2.14	1.4	15.0	734	3.5
95	19/2.52	1.6	17.5	962	3.5
120	37/2.03	1.6	19.0	1180	3.2
150	37*2.25	1.8	21.0	1470	3.2
185	37*2.52	2.0	23.5	1810	3.2
240	61*252	2.2	26.5	2350	3.2

Flexible Wire Parameters
Specification	BVR 1.5mm²	BVR 2.5mm²	BVR 4.0mm²	BVR 6.0mm²	BVR 10mm²
Conductor diameter	0.52MM (±0.01)	0.41MM (±0.01)	0.52MM (±0.01)	0.64MM (±0.01)	0.52MM (±0.01)
Number of copper wires	7 conductors	19 conductors	19 conductors	19 conductors	49 conductors
Average outside diameter	2.7-3.3mm	3.3-4.0mm	3.8-4.6mm	4.3-5.2mm	5.6-6.7mm
Extreme power	4180W	5720W	7700W	9680W	13200W

Nominal section mm²	No. of Strands No./Dia.(mm)	Insulation Thickness mm	Overall Jacket Thickness mm	Approx. Wt. kg/km	Minimum insulation resistance at 70°C Ω·km
H05V-K
0.5	16/0.2	0.6	2.6	9.1	12
0.75	24/0.2	0.6	2.8	12.2	10
1.0	32/0.2	0.6	3.0	15.1	10
H07V-K
1.5	30/0.25	0.7	3.5	21.4	10
2.5	49/0.25	0.8	4.2	24.5	9.0
4	56/0.30	0.8	4.8	51.8	7.0
6	84/0.30	0.8	6.4	74.1	6.7
10	80/0.40	1.0	8.0	120	5.6
16	126/0.40	1.0	8.8	211	4.6
25	196/0.40	1.2	11.0	303	4.4
35	276/0.40	1.2	12.5	417	3.8

Product Features
H07V-R is single core cable and a type of low voltage house wiring cable, which is often used in houses, offices, electrical control panels, and industrial lighting. The conductor is pure copper and the high-quality PVC insulation to protect the copper core from external damage will increase the service life of wires and cables.
1. Pure copper conductor, the use of pot technology to eliminate internal stress, avoiding unevenness at both ends caused by continuous pulling and retreating, has good electrical conductivity and safety.
2. The environmentally-friendly PVC raw material, good insulation performance, scratch resistance, abrasion resistance, good toughness.
3. The low eccentricity of the wire and cable, the uniform insulation prevents the cable from breaking down and ensures the safety of electricity.
The product is suitable for fixed installation of power plant with rated AC voltage up to and including 450/750V. Such as home decoration lighting. Fixed wiring can be used for indoor open coating, pipe piercing and other occasions. In order to facilitate the difference in the installation process, it can be divided into seven colors: red, yellow, blue, green, black, white and double. As BVR is soft structure, its application scope is mostly in soft environment.
The only difference between BVR wire and BV wire is that the diameter of the R wire conductor is soft copper wire. That is, increase the number of conductors and reduce the diameter of a single conductor. The diameter of a single conductor is less than 1 mm. In this way, BVR wire is very soft, laying Angle requirements are greatly reduced than BV wire, threading pipe, groove more convenient, fast, reduce the working intensity while greatly improving the work efficiency. By the majority of electricians and architectural decoration personnel like!
Detailed Photos
Company Profile
Product Catalog
FAQ
1.Are there additional sizes?
Can be customized according to customer needs.
2.What about the delivery time?
Usually 5-12 days. (This generally depends on your order quantity. There are some products we have in stock and can be shipped within 3 days.)
3. What's your MOQ?
Our normal MOQ is 2000 meters per color per size (Electrical wire). The power cable MOQ is 500-1000 meters.
We also can make less than our normal MOQ. But the price will be adjusted accordingly. And we are glad to custom made samples for you to test the quality before bulk order.
4. Is there cheap shipping cost to import to our country?
For small order, express will be best. And for bulk order, sea ship way is best but takes much time; For urgent orders, we suggest via air to airport plus our ship partner send to your door. When we calculate the freight for you, we will choose the cheapest, safest express company. It is the freight company that asks us to pay, so we cannot make it cheaper. If you have your own agent in China, we can send the package to your agent.
5. May I visit your factory?
Sure, welcome any time. We can also pick you up at the airport and station.
Packaging Details: 160-190 rolls 1.5/2.5/4.0mm² /Carton or as you request.
Delivery Detail: 48 hours for small orders, large orders depend on quantity.
For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 24 hours!!!
