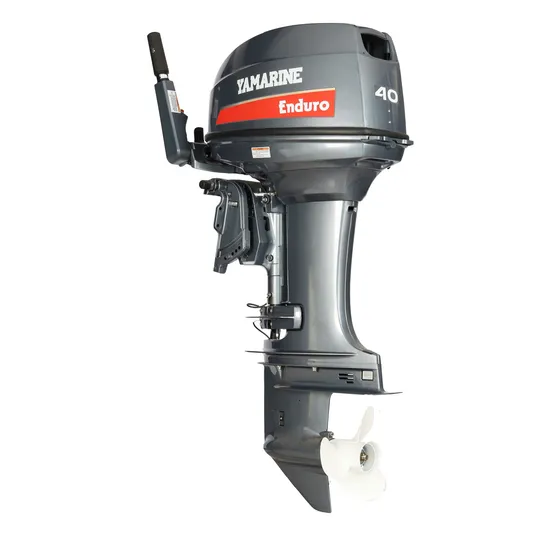

Japan Yamarine 2 Stroke 40HP Outboard Motor and Engine Replace YAMAHA E40xmh

Product Description

Engine Type	L2
Displacement [cm3]	703
Bore * Stroke [mm]	80.0 x 70.0
Max. prop Shaft output [kW (ps)] @r/min	29.4 (40) @5000
Fuel Induction System	Carburetor
Lubrication System	Pre-mixed Fuel and Oil
Engine Transom Height[mm (inch)]	S: 424 (16.7), L: 550 (21.7), X: 649 (25.6)
Dry Weight [kg] *	72-81
Starting System	Manual Starter or Manual & Electric Starter (*depending on model)
Controls	Remote Control or Tiller Handle (*depending on model)
Tilt System	Manual Tilt or Power Trim & Tilt (*depending on model)

The YAMARINE E40XMH is a model from Yamaha's Enduro Series, designed for commercial and heavy-duty applications. Known for its durability, reliability, and performance in demanding conditions, the E40XMH is a popular choice for operators who need a robust outboard motor. Below is a detailed overview of the YAMARINE E40XMH outboard motor, including its features, specifications, and typical uses.
YAMARINE E40XMH Overview Model: E40XMH
Series: Enduro Series
Engine Type: 2-stroke
Horsepower: 40hp
Shaft Length: Extra-long shaft (25 inches)
Weight: Approximately 78 kg (172 lbs)
Fuel Type: Gasoline (mixed with 2-stroke oil)
Cooling System: Water-cooled
Key Features Durability:
Built for commercial use, the E40XMH is designed to withstand harsh environments, including saltwater.
Corrosion-resistant materials and coatings enhance longevity.
Reliability:
Yamaha's reputation for reliability ensures consistent performance, even under heavy use.
Simple and robust design minimizes the risk of breakdowns.
Ease of Maintenance:
The 2-stroke engine has fewer moving parts compared to 4-stroke engines, making it easier to maintain.
Accessible components simplify routine servicing.
Manual Start:
Equipped with a manual recoil starter for reliable ignition, even in remote locations.
Tiller Steering:
Simple tiller handle for easy operation and control.
Extra-Long Shaft:
The 25-inch shaft is ideal for boats with high transoms or in rough water conditions.
Specifications Displacement: 696 cc
Full Throttle RPM Range: 5,000 - 6,000 RPM
Gear Ratio: 2.15:1
Gear Shift: Forward and neutral
Propeller: 3-blade aluminum propeller (size varies based on application)
Fuel Consumption: Approximately 8-10 liters per hour at full throttle (varies based on load and conditions)
Typical Uses The YAMARINE E40XMH is ideal for:
Commercial Fishing: Reliable and durable for long hours of operation.
Workboats: Suitable for light-duty workboats in rivers, lakes, and coastal areas.
Tenders and Dinghies: Provides sufficient power for small to medium-sized boats.
Remote Locations: Easy to maintain and operate in areas with limited access to services.
Advantages Cost-Effective: Lower initial cost compared to 4-stroke engines.
Simple Design: Easy to repair and maintain, even in remote areas.
Proven Performance: Yamaha's Enduro Series is trusted by commercial operators worldwide.
Maintenance Tips Regular Servicing:
Follow Yamaha's recommended maintenance schedule for oil changes, spark plug replacement, and gearbox lubrication.
Flush After Use:
Rinse the motor with fresh water after use in saltwater to prevent corrosion.
Inspect Propeller:
Check for damage or debris that could affect performance.
Use Quality Fuel:
Use clean, high-quality gasoline and the correct 2-stroke oil mix (typically 50:1 or as specified in the manual).
Why Choose the YAMARINE E40XMH? The YAMARINE E40XMH is a reliable and durable outboard motor designed for commercial and heavy-duty applications. Its simplicity, ease of maintenance, and proven performance make it a popular choice for operators who need a dependable motor in challenging environments.
If you're considering the YAMARINE E40XMH, it's important to ensure it meets your specific needs in terms of power, shaft length, and application. Let me know if you need further details or assistance!
