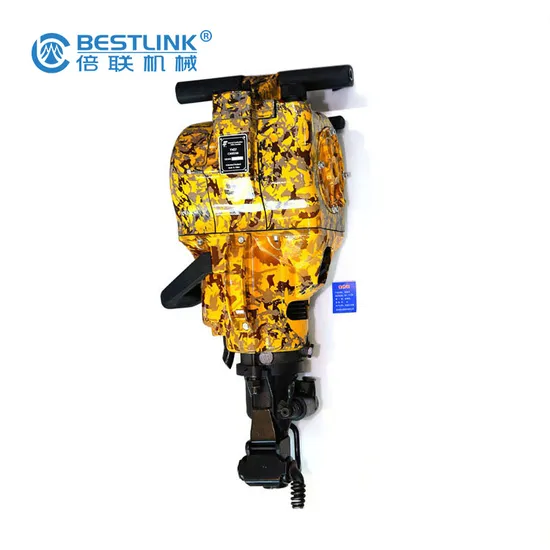

Yn27c Gasoline Rock Drill Pionjar 120
| US$350.00-650.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YN27C
Controlling Mode
Artificial
Number of Shaft
No
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
No
Condition
New
Color
Yellow
Quality
High Quality
Feedback
Good
Brand Name
Bestlink
Transport Package
Wooden
Specification
CE
Trademark
BESLINK
Origin
Xiamen, Fujian
HS Code
84671100
Production Capacity
300set /Month
Product Description
Internal Combustion Gasoline Rock Drills for Drilling Hole1. Very efficient. 2. Less of the -easy-to -damage-part. 3. Very easy to control. 4. CE approved. 5. Only 27 kg
The Internal Combustion Rock Drill Type YN27C is a very efficient machine with the haracters that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock Drilling.
| Technical specifications | |
| Weight of main machine | 27kg |
| Overall dimensions(L*W*H) | 746*315*229mm |
| Type of engine | Single cylinder, air cooled two strokes |
| Cylinder diameter*stroke of piston | Φ58*70mm |
| Rotation speed of engine | ≥2450rpm |
| Displacement of engine piston | 185cm³ |
| Type of carburetor | hand needle valve, floatless type |
| Ignition system | controllable silicon, contactless system |
| Drilling speed (mean value of five holes) | ≥250mm/min |
| Drilling hole diameter | Φ28-42mm |
| Max drilling depth | 6m |
| Fuel consumption | ≤0.12L/m |
| Tank capacity | ≥1.5liter |
| Mixture ratio of gasoline and lubrication oil (in volumes) | 12:01 |
| Drill rod and breaker shank | Hex22*108mm |
| Rotating speed of drill rod | ≥200rounds/min |
| Clearance of spark plug | 0.5-0.7mm |
