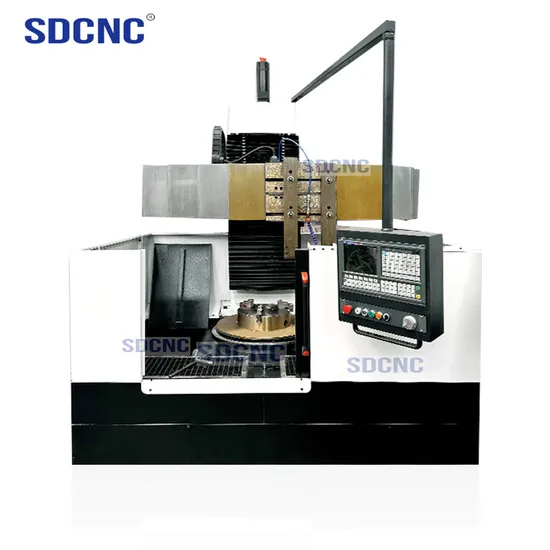

Single Column Vertical Lathe Ck518 Vertical Lathe Heavy Duty CNC Conventional Vertical Lathe
| US$30,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK518
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
CNC Vertical Lathe
Keyword
CNC Lathe
CNC or Not
CNC
Model
Ck518
Transport Package
Wood Packaging
Specification
2080*2621*3515
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
208.00cm * 262.00cm * 352.00cm
Package Gross Weight
6000.000kg
Product Description
SDCNC CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy
workpieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface,
an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve
workpieces, and can also be processed by means of additional devices such as running threads, spherical surface
turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in
the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and
the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are
more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain
its working accuracy for a long time.
Product Parameters
| Model | CK518 |
| Max.turning diameter(mm) | 800 |
| Working table diameter (mm) | 700 |
| Max. height of workpiece (mm) | 800 |
| Max. weight of work-piece (kg) | 1500 |
| Range of worktable rotation speed (rpm) | 30-260 |
| Feeding series | stepless |
| Range of tool rest feed (mm/min) | 0.25-90 |
| Cross beam travel (mm) | 500 |
| Horizontal travel of tool rest (mm) | 500 |
| Vertical travel of tool rest (mm) | 450 |
| Size of section of cutter bar (mm) | 30*40 |
| Main motor power (kw) | 11 |
