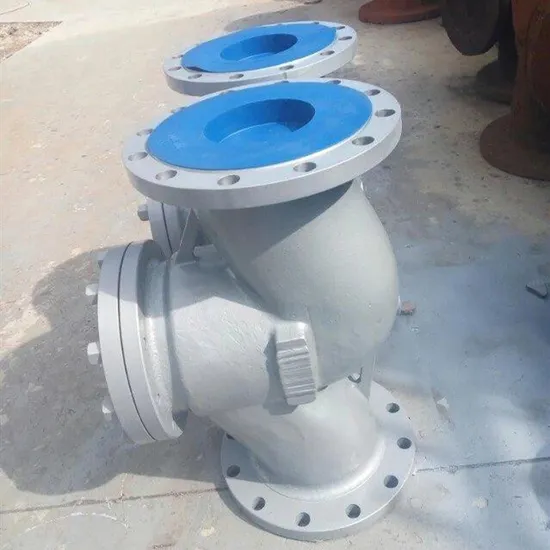

(H41Y-16C) GB/ASME/JIS150lb Flanged Connection Swing Carbon Steel Stainless Steel Valve Body Hard Seal Flanged Connection Non Return Lift Industrial Check Valve

Product Description

Product Description The lifting check valve produced by HebeiYaosheng IM&EX Trading Co., LTD is extensively used in petro-chem industry, pharmacy and power industry ect.And it is applicable to the pipelines where the nominal pressure is ≤1.6Mpa by functions of open/close.

work temperature	≤425ºC
pressure	PN10/16
type	H41Y-10/16
medium	water oil and gas
connection type	flange connection

Main parts and materials
No.	Main parts	Materials
1	Valve bady	WCB
2	Bonnet	WCB
3	Disc	WCB
4	Sealing	Stainless steel/Hard alloy

Function and specification
Type	PN(MPa)	Testing pressure (MPa)		Suitable temperature(ºC)	Suitable medium
		Strength (water)	Enclose (water)
H41Y/H-16C	1.6	2.4	1.6	≤425	Vapour, Water, Oil
H41Y/H-25	2.5	3.8	2.5
H41Y/H-40	4.0	6.15	4.0
H41Y/H-64	6.4	9.75	6.4

Outline and connecting measurement
Type	DN(mm)	Measurement(mm)				Reference Weight(kg)
		L	D1	H	Z-Фd
H41Y/H-16C	15	130	65	77	4-14	3
	20	150	75	77	4-14	4
	25	160	85	80	4-14	5
	32	180	100	85	4-18	7
	40	200	110	95	4-18	9
	50	230	125	105	4-18	10
	65	290	145	120	4-18	20
	80	310	160	158	8-18	30
	100	350	180	180	8-18	39
	125	400	210	205	8-18	50
	150	480	240	223	8-22	70

Tips:1.The utility model has the advantages of simple structure, reliable operation and convenient maintenance.2.The valve is widely used in the production process of purification equipment, petroleum, chemical industry, metallurgy, electric power, textile and so on.
3.Good sealing, low friction between sealing surfaces and long service life.Company Profile
Hebei Yaosheng idustry located in B # industrial park, Xushui district, Baoding city, Hebei province, is a professional company integrating
the research, development, manufacture and sales.Standards suchGB, JB, USAPI, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. There are about 100 series of products, such as gate valve,globe valve, check valve, ball valve, butterfly valve,bottom valve, drain valve, filter, and flange,which have been widely used in fields of petroleum, petrochemical, chemical, electric
power, construction, medicine, water supply and drainage. Products have been widely launched in the market of European and Middle East and Southeast AISA, mainly including the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries.
