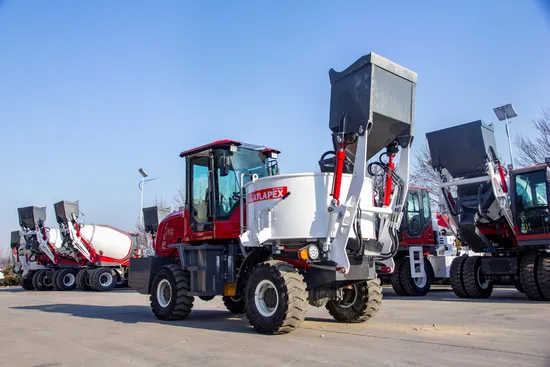

S1500s Self Propelled Concrete Mixer Trucks Self Loading Price

Product Description

SELF-LOADING CONCRETE MIXER S1500S ATLAPEX self-loading concrete mixer is a device that can self-load aggregates, weigh the batch, mix concrete, transport, and area it any place called for. It is therefore a stand-alone machine that can complete the concrete mixing job by requiring a single person to operate the device.
It is widely made use of in the construction market around the world. Several special models of self-loading concrete mixers are readily available on the market, each having its benefits as well as drawbacks. All kinds are highway as well as all-terrain devices that is commonly utilized in the construction of canals, household, industrial, commercial structures, as well as other construction applications. SPECIFICATIONS

	Model	S1500
	Machine size	5100x1900x3100mm
	Wheelbase	2600mm
	Total weight	4500kg
	Engine	YUNNEI 4102 TURBO supercharged
	Power	76kw
	Gearbox	265 integrated
	Drive axle	1.5T hub reducer
	Tires	20.5-16
	Bucket capacity	0.4m³
	Mixing capacity	1.5 m³
	Reduction ratio	1:28
	Rotating speed	≥20 laps/minute
	Travel speed	30km/h
	Axle number traction type	4x4
	Max. Gradeability	30°
	Minimum turning ratio	4000mm
	Min. Ground Clearance	300mm
	Tank diameter	1700mm
	Tank deepth	750mm
	Quantity of discharge port	2 (customerized)
	Height of discharge port	900mm
	Turning angle of discharge port	±90°
	Water tank capacity	500L
	Tank driving type	Hydraulic
	Working efficiency	9CBM/28 Tons/Hours

A self-loading concrete mixer is a multi-functional machine that can self-loading all the concrete ingredients, mix, transport, and discharge.
Self loader mixer usually possesses a four-wheel-drive system that gives high traction to help the machine work in very soft clay site conditions.
It has a hydraulic-driven drum that provides high turning that assists in reliable mixing procedure. Once the mix is ready the drum can be lifted for fast and also reliable discharge of concrete.
The self concrete mixer machine has a steel bucket that makes it possible for the operator to load resources to the drum.
The loading and also blending operations, the speed, and direction of the drum are all regulated from the cabin of the vehicle
A self loading transit mixer can be quickly packed in big vehicles and also delivered to any kind of long-distance construction site. This feature makes it suitable for little, slim, and isolated building and construction sites.
DESCRIPTIONS

	1. Luxury cab. The luxurious cab, with the sturdy cab frame, the flight level seat, the wide field of vision, the driving is very comfortable, and the anti-rollover seat can meet the space and comfort requirements of the driver.
	2. Stirring system. Stirring system, national standard ferromanganese thickened tank, large torque reducer, with thick stirring shaft, reinforced stirring teeth, reliable performance and more durable.
	3. Discharge port. Discharge port The vehicle is equipped with 2 discharge ports as standard, and can also be customized according to user needs. The discharge port is fast, no material jamming, and no material leakage.
	4. Loading bucket. Loading bucket, cement bucket Equipped with a 0.4 cubic feeding bucket, the national standard manganese steel thickened material, with a discharge bin door, which can accurately control the material ratio, and realize downturning and unloading at any angle without dead ends.
	5. Reinforced engineering tires. Reinforced engineering tires, wear-resistant, strong off-road, not afraid of complex terrain, safe and reliable.
	6. Hydraulic system. Hydraulic system, hydraulic pilot operation, the whole vehicle adopts domestic first-line brand hose, hydraulic pump, hydraulic cylinder, hydraulic oil, the service life is more than 5 times higher than that of ordinary brands, and it can achieve 24-hour operation without high temperature.
	7. Engine. Engine: It is equipped with National III high-pressure common rail engine, Yuchai, Yunnei and Weichai are optional, the average fuel consumption is 25%-30% lower, the power is strong, economical and durable, energy saving and environmental protection.
