TCP IP RF433 Tuya Smart Remote Unlock WiFi Video Intercom Wireless Doorbells

Product Description

Va Product Description
Detailed Photos
ndalproof TCP IP Video Intercom Doorbell Support Smartphone Remote unlock control

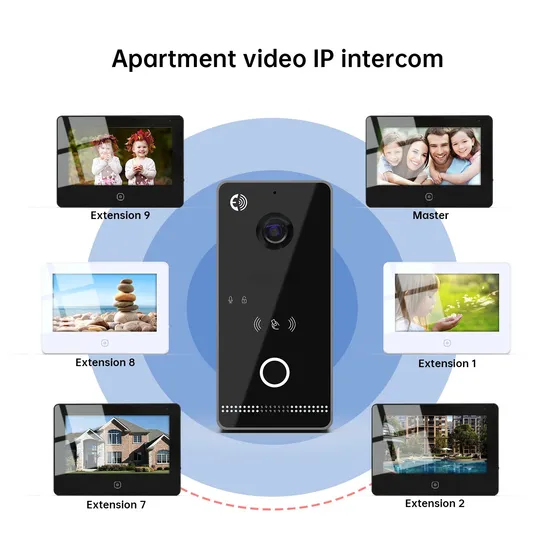

Product Parameters IP and WiFi apartment video intercom panel
2MP super definition camera
Wide view angle 125°
Live video and two-way talk
Support H.265 & H.264
Build in WiFi Dual-Brand 2.4~2.4835GHz and 5.15~5.85GHz
Self-adaptive light supplement
Powered by a non-stop wired charge
Motion detection and alerts
Human motion detection and alerts
Pre-Roll video previews
Support swiping card unlock(optional )
Support "EXIT" button unlock
Works with existing doorbell chime
Gate and lock control by APP
Build in micro SD card, up to 512GB (Class 10, FAT32) (optional)
POE IEEE 802.3af & DC12-48V AC& 12-36Vpower supply
Support surface mount
Tamper alerts
IK07&IP65
Support Wifi convenient setting up and no wiring required
Support web configuration

Specifications
System parameters	Processor	High-performance embedded SOC processor
	Operation system	Embedded linux operation system
Video parameters	Lens	1/2.8" 2MP CMOS low illumination camera
	FOV	H:125° ,V:72°,D:150°
	WDR	Support
	Video compression standard	H.265 (default), H.264
	Noise reduction	3D noise reduction
	Supplement light	IR supplement
	Pixel	Main stream: 1920 × 1080p, 720p, Sub stream: 640x360
Audio parameters	Audio intercom mode	Full duplex
	Audio compression standard	G.711 U
	Audio compression rate	64 Kbps
	Audio quality	Noise suppression and echo cancellation
	Specification of speaker	1W/8 ohm
	Specification of microphone	-38dB±2/2V
Network parameters	Communication protocol	TCP/IP, RTSP
	Wired network	10M / 100M adaptive belt POE
	Wi-Fi	2.4~2.4835GHz and 5.15~5.85GHz 802.11 a/b/g/n
	IOT	Tuya Smart App
Device interfaces	Network interface	1
	Tamper	1
	Gate	NO/NC (MAX AC/DC30V 4A)
	Output unlocking	DC12V(Transient current:700mA-40ms, Continuous current 120mA)
	Exit button	1
	Door contact input	1
	Ringbell	1
	Wiegand 26/34 (W1)	1
	Wiegand 26/34 (W0)	1
	TF card	1
	Power interface	1
RF	Communication frequency	433.92MHz
	Transmitting power	+14dBm
	receiver sensitivity	-110dBm
	Modulation Mode	OOK
	Communication Distance	About 100 meters (open distance)
	Encoding format	Fixed code encryption algorithms
General	Button	1
	Indicator	2
	Protection grade	IK07; IP65
	Application environment	Outdoor
	RFID Card	125KHZ (ID)/ 13.56MHZ(IC)
		Em marine (ID) / Mifare(IC)
		Supports ISO/IEC 18000-2 type A (ID)
		Supports ISO/IEC 14443 type A 106kb/s(IC)
		Number of cards supported: 1000
		Card reading distance: <=2cm
	Power supply mode	POE IEEE 802.3af / DC12-48V / AC 12-36V
	Power consumption	≤3W (Standby), ≤4.5W (Working)
	Working temperature	-40°C to +60°C
	Working humidity	10%RH- 90%RH (non-condensing)
	Housing material	Plastic painting
	Installation method	Surface mount
	Product size	134*63*27mm
	Weight	190g

All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.
FAQ
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.

Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.

Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
