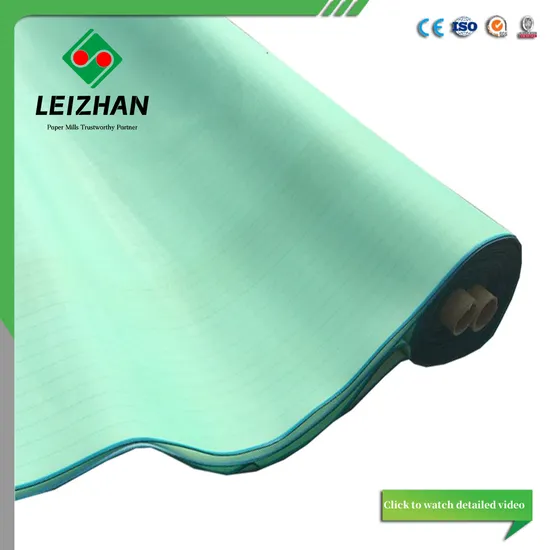

Press Felt Forming Fabric Dryer Fabric Paper Machine Clothing for Paper Mill
| US$10.00-20.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZ4101-4109
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Surface Treatment
Heat Setting
Manufacturing Process
Weave
Material
Polyester
Name
Paper Making Felt
Usage
Paper Machine
Using Position
Forming/Press/Dryer Section
Structure
Single Layer/Double Layer/Triple Layer
Raw Material
Local and Import
Kind
Forming/Press/Pick up/Dryer Felt etc.
Air Permeability
20-140cfm
Speed Limited
Below 1800m/Min
Linear Pressure
100-200kn/M
Advantage
Long Service Time
Size
Customized
Delivery Time
Around 20 Days
Package
Air or Sea Transport Standard Package
OEM
Negotiable
Service
Online Service
Transport Package
Air and Sea Standard Package
Specification
According to customized
Trademark
Lei Zhan
Origin
China
HS Code
59113200
Production Capacity
500000 Ton/Year
Product Description
Product Description The main function of the press section of the paper machine is to remove water as much as possible before the paper enters the dryer section to increase the dryness of the paper. Every increase of 1% in the dryness of the output press paper can reduce the drying load of the dryer by 4%. Therefore, it can save energy and increase production; in addition, the press section has the function of appropriately increasing the tightness of the paper, increasing the fiber binding force and paper strength, and improving the smoothness.| Single layer | Single layer forming BOM felt | Working speed | ≤800m/min |
| Single layer press BOM felt | Paper kind | all kind | |
| Single layer top BOM felt | Line pressure | ≤80KN/m | |
| Double layer | Double layer forming BOM felt | Working speed | ≤1000m/min |
| Double layer press BOM felt | Paper kind | all kind | |
| Double layer top BOM felt | Line pressure | ≤60-200KN/m | |
Triple layer | Triple layer BOM for large roll press | Working speed | ≤1000m/min |
| Triple layer BOM for shoe press | Paper kind | Newsprint, culture paper, high - grade board card paper | |
| Triple layer BOM for hot press | Line pressure | ≥ 200KN/m |
| Series | Applicant | Machine Speed |
| 4-shed , 5-shed series single layer polyester forming fabrics | producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint | common fourdrinier paper machine |
| 8-shed single layer polyester forming fabric | kraft paper, cardboard , corrugated paper making, common printing paper | common fourdrinier paper machine |
| 8-shed double layer fabric | quality printing paper. For example,dictionary paper, offset printing paper, newsprint and wrap paper, tissue paper making and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc | medium and high speed paper making machine |
| 16-shed double and a half layer polyester forming fabric | quality printing paper, such as offset printing paper, copper plate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. | medium and high speed paper making machine |
| Multi-shed three-layer fabric | quality printing paper, tissue paper and cigarette paper etc | high speed paper making machine |
Press felt
| Single layer | Single layer forming BOM felt | Working speed | ≤800m/min |
| Single layer press BOM felt | Paper kind | all kind | |
| Single layer top BOM felt | Line pressure | ≤80KN/m | |
| Double layer | Double layer forming BOM felt | Working speed | ≤1000m/min |
| Double layer press BOM felt | Paper kind | all kind | |
| Double layer top BOM felt | Line pressure | ≤60-200KN/m | |
Triple layer | Triple layer BOM for large roll press | Working speed | ≤1000m/min |
| Triple layer BOM for shoe press | Paper kind | Newsprint, culture paper, high - grade board card paper | |
| Triple layer BOM for hot press | Line pressure | ≥ 200KN/m |
| Type | Spiral loop width mm | Filament diameter (mm) | Tensile strength N/cm | Weight Kg/m² | Thickness mm | Air permeability m³/m²h | CFM 127Pa | |
| Spiral ring monofilament | Connection Wire | |||||||
| 5080A | 5.2 | 0.50 | 0.80 | 1800 | 1.00 | 2.10 | 15000 | 937 |
| Red 6280A | 5 | flat wires 62/30 | 0.80 | 1600 | 0.90 | 1.90 | 13000 | 820 |
| 6890A | 8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
| 6890B | 7.15 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
| 7090B | 7.5 | 0.7 | 0.90 | 2200 | 1.45 | 2.60 | 16500 | 1031 |
| 70100B | 7.2 | 0.7 | 1.00 | 2200 | 1.50 | 2.54 | 16800 | 1050 |
| Red 9090A1 | 8 | flat wires 0.9*0.60 | 0.90 | 1800 | 1.60 | 2.80 | 17000 | 1060 |
| 9090A2 | 8 | 0.90 | 0.90 | 2300 | 1.80 | 3.03 | 19000 | 1188 |
