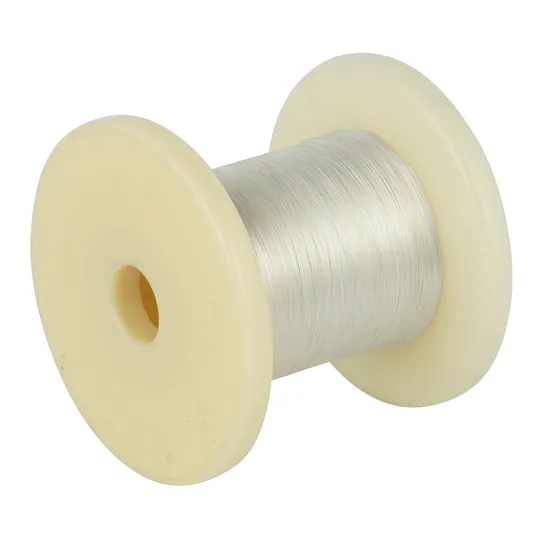

Js Meitong Silver Plated Copper Wire Single and Stranded

Product Description

Product Description
Product Parameters

Silver Plated Copper Wire - Single
Project	Diameter(mm)
	0.05≤d≤0.1	0.1<d≤0.25	0.25<d≤0.5	0.5<d≤2.0
tolerance(mm)	±0.002	±0.003	±0.004	±d%
electrical resistivity (Ωmm²/m)	≤0.017241(soft)
	≤0.01796(hard)
Elongation(%)	≥13%	≥18%	≥20%	≥25%
Tensile Strength(Mpa)	soft:≥196 hard:≥350
plating(um)	0.2-10um
appearance	No scratches, oil, copper exposure, oxidation and other abnormalities
Package	5 inch, 8 inch, 9 inch, 300 type, 400 type rubber disc, 400 type steel disc, 500 type steel disc, etc
remark	Can be changed according to customer requirements

Silver Plated Copper Wire - Stranded
Project	Diameter(mm)
	0.05≤d≤0.09	0.09<d≤0.25	0.25<d≤0.5
tolerance(mm)	±0.003	±0.004	±0.005
electrical resistivity (Ωmm²/m)	≤0.01851	≤0.01802	≤0.0177
Elongation(%)	≥6	≥12	≥15
number wire	7-100
lay direction	S OR Z
Resistance(mm)	2.0-100mm
Tensile Strength(Mpa)	≥196
plating(um)	0.3-2.0um
appearance	No scratches, oil, copper exposure, oxidation and other abnormalities
Package	DIN200,DIN300,DIN400 rubber disc, 400 type steel disc, DIN500 steel disc, etc
remark	Can be changed according to customer requirements

Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
FAQ Do you accept OEM or ODM? Of course.We also have a professional design team who can assistant you to design. What is minimum order quantity? Usually accept 500 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks! What is your sample policy? 1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs. 2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount. What certification do you have? Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications. What information should I let you know if i want to get a quote? Please offer the specification of the product if possible.Such as material,logo color,size, content list, quantity.etc.Or contact us directly just by a thought. What is the delivery date? Our products are normally shipped about 25-35 days after order confirmation. But it may take longer or shorter up to different order quantity. How can I know order status? We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.
