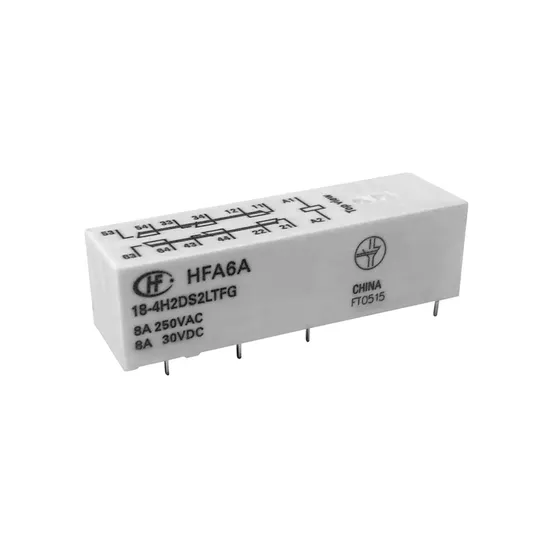

Industrial Relay Base A6 Power Control Relay
| US$4.00-5.00 | 300 Pieces (MOQ) |
Basic Info.
Model NO.
A6
Phase
2
Electricity Type
Dc
Number of Pole
2
Load
High Power Relay
Protective Characteristics
Open Relay
Action Principle
Electronic Type
Size
Miniature
Type
Electric Parameter Relay
Colour
Yellow
Coil Voltage
36, 9, 12, 48, 24, 6, 18
Contact Arrangement
5form a+1form B , 3form a+3form B, 4form a+2form B
Contact Version
Single Contact
Terminal Type
PCB
Transport Package
Carton
Specification
40.0 x 13.0 x 24.0
Origin
China
HS Code
8536690000
Production Capacity
500000PCS/Year
Product Description
Product DescriptionA6: Multi contact arrangements: 5NO+1NC, 4NO+2NC, 3NO+3NCForcibly guided contacts according to EN502056A switching capabilityLow input power: 500mWHigh insulation capability: 10kV surge voltage between input and outputUL insulation system: Class F availableEnvironmental friendly product (RoHS compliant)Outline Dimensions: (50.0 x 13.0 x 24.0) mm
A6A:
Forcibly guided contacts according to IEC 61810-3 (EN50205)
8A switching capability
4kV dielectric strengh(between coil and contacts)
UL insulation system: Class F available
Environmental friendly product(RoHS compliant)
| Type | HFA6 |
| Coil voltage form | DC |
| Coil voltage | 36, 9, 12, 48, 24, 6, 18 |
| Contact arrangement | 5Form A+1Form B , 3Form A+3Form B, 4Form A+2Form B |
| Contact version | Single contact |
| Terminal type | PCB |
| Sort | Single side stable |
| Contact capacity | AgSnO2 |
| Insulation standard | B, F |
| Contact plating | No gold Plated, & x1C;& x06;Gold Plated |
| Packing method | plastics packing |
| Rated voltage(V) | 250VAC |
| Coil angel form | PCB |
| Coil power | Approx.0.5W |
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min |
| Operate time(ms) | ≤20 |
| Release time(ms) | ≤20 |
| Coil resistance(Ω) | 6:72;9:162;12:288;18:648;24:1152;36:2592;48:4608 |
| Creepage Distance(mm) | 8 |
| Electrical Distance(mm) | 5.5 |
| Insulation resistance(MΩ) | 1000 |
| Max. switching Current(AC) | 6 |
| Max. switching Current(DC) | 6 |
| Max. switching voltage(VAC) | 400 |
| Max. switching voltage(VDC) | 30 |
| Ambient temperature (max)(ºC) | -40 |
| Ambient temperature (min)(ºC) | +85 |
| Mechanical endurance min | 10000000 |
| Electrial eddurance min | 100000 |
| Contact gap | Nil:0.8 |
| Product Description | Safety relay |
| Application | appliances,etc |
| Weight(g) | Aporox. 25 |
| Volume(mm³) | 50×13×24 |
| Product approval | UL,TUV,CQC |
| File No. | UL:E134517,TUV:B120553286004,CQC:CQC16002150625 |
