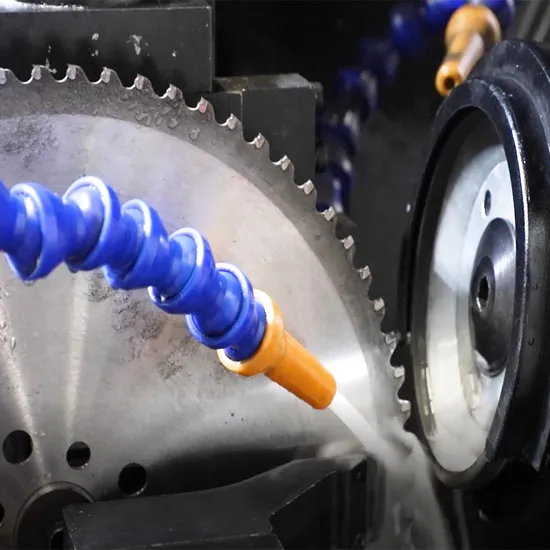

High Precision CNC Circular Saw Blade Sharpener Grinding Machine

Product Description

High Precision Low Cost Metal Cutting Circular Saw Blade Sharpener Grinding Machine

Saw blade diameter	120~810mm
Hook angle	25°~-30°
Top angle	8°~30°
Top bevel	45°~-45°
Face angle	30°~-30°
Bore diameter	12~120mm
Pitch	2~80mm
Top wheel size	φ125mm*φ32mm*16mm
Notch wheel size	φ125mm*φ32mm*9mm
Face wheel size	φ150mm*φ32mm*14mm
Wheel speed	2500~3500RPM
Grinding speed	6~30s/tip
Power	5KW
Dimension	2500*1800*2200mm
Weight	3680KG

1) Multi-functional: manufacturing & resharpening top/face/chamfer/groove/chip breaker slot for cermet tipped cold saw blade tooth.
2) Easy operation: CNC with friendly interface panel, all parameters can be set directly and stored automatically
3) High accuracy: <0.015mm or even better. this machine is with the highest precision
4) Good stability: use specially treated cast iron base, no deformation, low vibration,long term use.
1. What products do we have?
Four kinds of saw blade ginding machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpening machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpening machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blades sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
3.Where is the loading port?
---Tianjin, China.
4.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
5.Where is the address of the factory?
---Our factory is located in Tangshan city, Hebei province, China.
6.What is the grinding accuracy of the grinding machine?
---The accuracy of the grinding machine is between 0.01-0.03mm.
7. Which tooth surfaces of the saw blade can your grinding machine grind?
---It can grind any tooth surface, and you can choose a grinding machine to grind the tooth top, tooth face or side surface according to your needs.
8. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
9. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
10. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
