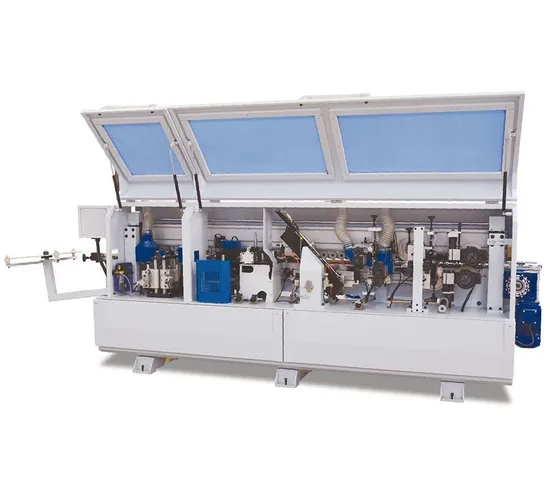

14kw Furniture Full Automatic Wood PVC Gluing Edge Banding Machine

Product Description

14kw Furniture Full Automatic Wood PVC Gluing Edge Banding Machine Product Description
Product Parameters

Model	HX290
Edge band thickness	0.4-3mm
Panel thickness	10-45mm
Panel width	≥80mm
Panel length	≥150mm
Working speed	12m/min
Working pressure	0.6-0.8mpa
Machine size	3450*700*1200mm
Weight	1000kg
Standard voltage	380V 50hz 3phase
Standard packing	Plywood box

Detailed Photos

Pre milling	Gluing
Using 2 pcs of wear-resisting diamond cutters, work on the waved effect that is caused by precise panel saw. Ensure the edges of panel are good for banding	Hot melt adhesive is added through the glue pot, and the spiral structure is adopted to feed the adhesive, so that the sheet material and the sealing material can be coated evenly.

End cutting	Rough trimming
Adopt normal high matching technology structure, through precise linear guide movement, adopt automatic tracking by mould and fast cutting structure of high frequency and high speed motor, ensure smooth cutting surface.	Two motors,motor can manually adjust the Angle, (0-5 °);equipped with independent vacuum hood. Eliminate the redundant tape in the top and bottom sides of board

Scraping	Buffing
It is used to eliminate the wavy marks caused by the cutting process of trimming non-linear motion, so that the upper and lower parts of the plate are more smooth and neat. At the same time, the size of the arc angle can be adjusted to make the sealing effect more perfect.	Clean the finished boards with a cotton polishing wheel. Remove excess glue and smooth the end face of sealing edge by polishing.

Control system:Delta	Safety device: Honeywell brand
1> PLC overall equipment control; 2> 7" industrial touch screen display; 3> All kinds of safety protection reminders.	1> The equipment complies with relevant national standards; 2> The cylinder limits the spacing of the feed plates to protect the normal operation of each component;

Tool conveying	Electrical Equipment : Delta brand
1> Abrasion resistant conveying block; 2> The semi-circular guide rail is precisely guided and hardened to improve wear resistance; 3> The conveying motor is started by frequency conversion, the starting is stable, and the braking system is provided. 3. Pressure beam device 1> Aluminum alloy profile compression beam;	1> 380v input voltage; 2> Independent Variable-frequency Drive control with motor brake function; 3> Phase sequence protection device; 4> Equipment and electrical appliances comply with relevant national standards.

Final Product
Company Profile
1.15 years woodworking machinery experience2. 8 years exportation experience3. Engineer team with +20 years experience 4. We joined Made in China Trade Assurance to make sure the buyer's benefit.5.Guarantee and After-sale service:a. 12 months warranty for the whole machine b. Technical support by phone, email or WhatsApp/Skype around the clock.c. Friendly English version manual and operation video CD diskd. Engineer available to service machinery overseas.6. Customer Feedback
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are in stock. They will be sent directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA, Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
