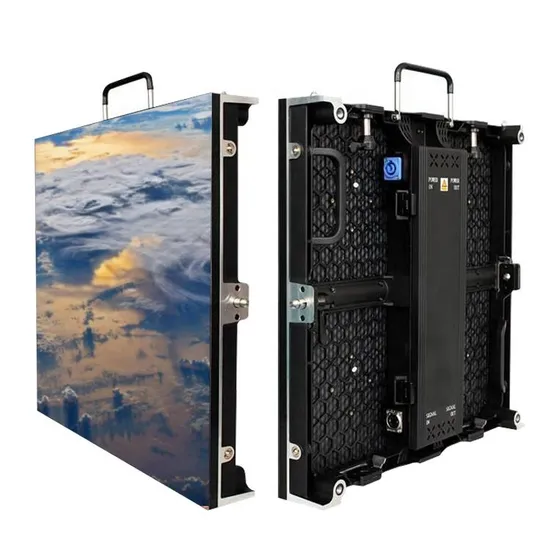

Full Color Outdoor Indoor Wedding Party LED Display Screen for Event Stage
| US$199.00 | 149 Pieces (MOQ) |
Basic Info.
Model NO.
Y004
Pixel Configuration
1R,1G,1B
Scanning Mode
1/16 Scan
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
Certification
CE, RoHS
Voltage
AC 110-240V
Service Life
100000h
Refresh Rate(Hz)
1920/3840/7680
Maximum Power Consumption
800W/M2
Transport Package
Carton or Flight Case Packing
Specification
Customized
Origin
China
Product Description
Product Description| 1 | HD small pixel LED display | P1.5625 / P1.667/ P1.923/ P2 |
| 2 | Hot rental LED display | P3 /P3.91 /P4 /P4.81 /P5.95 |
| 3 | Outdoor fixed LED display | P4/P5 /P6 /P8 /P10 /P16 /P20 |
| 4 | LED Control System | Nova Star / LINSN /Colorlight /Listen |
| 5 | LED | Nation Star /Kinglight |
| 6 | IC | 16380 /6373 /2163 |
| 7 | Power supply | Meanwell / G-energy |
| 8 | Cabinet kind | Iron /Aluminum /Die-casting /Fiber Aluminum |
| 1 | Pixel Pitch | 2.604mm / 2.976mm / 3.91mm / 4.81 mm |
| 2 | Cabinet Size | 500*500mm / 500*1000 mm |
| 3 | Pixel density | 65,536 dots/m2 |
| 4 | Color temperature | 6000K--8000K |
| 5 | Viewing angle | H: 140; V: 140 |
| 6 | Dead LED lamp rate | ≤0.1‰ |
| 7 | Non-Flatness | <0.2mm |
| 8 | Module interval | <0.2mm |
| 9 | Packaging Gross Weight(KG) | 8-12 kg (Estimated data) |
| 10 | Packaging dimension | 70*70*75c m (6cabinet in one case) |
| 11 | Max power/m2 | 1000 W/m2 |
| 12 | Brightness adjusted | 256 grade by auto-optic/color &8 grade by hand |
| 13 | Input signal | RF, S-video, RGB, RGBHV, YUV, YC&Composition, etc |
| 14 | Life-span | ≥1 00, 000 hours |
| 15 | MTBF | 5, 000 hours |
| 16 | Frame frequency | 25 - 60 Hz / s |
| 17 | Refresh rate | ≥2, 000 Hz / s |
| 18 | Single Input(with video processor) | HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc. |
| 19 | Control Distance | 120 m (no repeating); Optical fiber Transmission: 0.5km- 10km |
| 20 | Systems Operating Platform | Windows XP, Win 7, Win8, Win8.1, Win10 |
sales and service as one of the integrated high-tech enterprise, specializing in the production and operation of the Led Screen and Stage Lights. Major products have rental display, outdoor advertise display, dance display, poster display, Beam Lights, LED Par Lights etc.. Product because of its advantages of wide dynamic range, high brightness, long service life, stable and reliable work and become the ideal choice for many display media and outdoor work shows. Also can be widely applied to many industries of military, station, hotel, sports, news, finance, securities,
