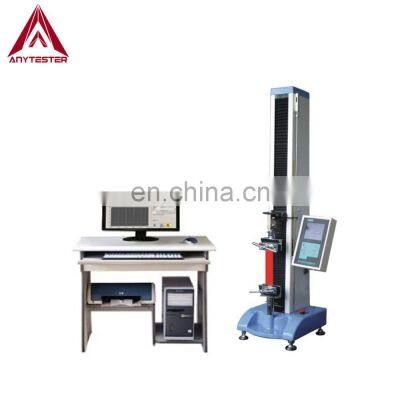

Electronic Lea Yarn Strength Tester

Product Description

Product Description
Product Description HY065C Electronic Lea Yarn Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials.Standard ASTM D3787, 4964,5034, 5035ISO13937, ISO 5081DIN 53859, DIN 53858BS3320, BS4303, BS2576GB/T 3923.1, GB/T 3917JIS L1096 Note: For more standards, please contact usFeatures 1 It is not only used for fabric test (standard configuration), but also for Electronic Lea Yarn Strength Tester with larger tensile space (optional)2 Adopt CRE measurement mechanism, micro-computer control, large LCD display, automatic data processing 3 Can be connected with computer to achieve more analysis function, real-time display test curve, breaking force, elongation, yield stress, yield elongation, force at rupture, initial modulus, CV value, etc.4.The test report can be printout5.With two load ranges for one machine to satisfy different test requirement and ensure the accuracy6.Various clamps can be optional to perform different test standardsTechnical Specification:ModelHY065C Electronic Lea Yarn Strength TesterLoad range120N, 500N, 2500N, 5000N, selectableGauge length 25~500mm, adjustableTensile speed 2mm/min~1200mm/min, settableReturn speed 2mm/min~1000mm/minTiming stretch 20s±3s, 30s±5sTest times 99times max.Elongation range 350% max. while set 200mm gauge lengthPower supply AC220V±10%, 50HzDimensions 380mm×480mm×1450mm (L×W×H)Weight122kg
