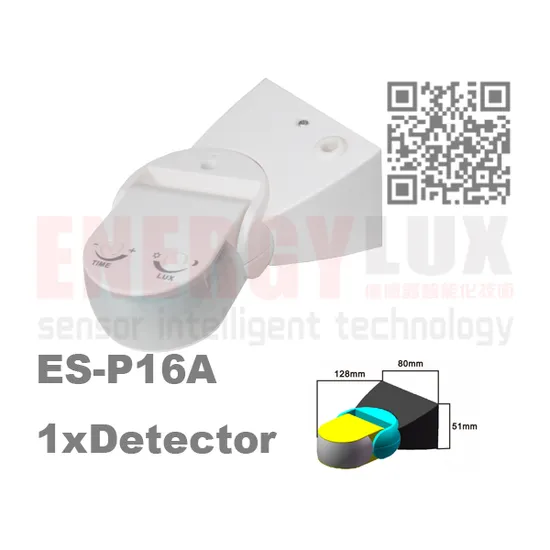

Es-P16A Wide Range Wall Infrared Motion Detector for Lighting

Product Description

ES-P16A wide range wall infrared motion detector for lighting specifications:
1. Power source: 220V/AC-240V/A
2. Power frequency: 50/60Hz
3. Time delay: Min. 10± 3sec.; Max. 7± 2min
4. Detection angle: 180°
5. Ambient light: < 10LUX-daylight
6. Working temperature: -10-+40ºC
7. Detection distance(24ºC): Max. Diameter 12m
8. Rated load: 1200W (220-240V/AC)
9. Power consumption: <0.9W(static 0.1W)
10. Installation height: 1.8-2.5m
11. Detection motion speed: 0.6-1.5m/s
12. Working humidity: < 93%RH
13. Switch Function: Auto/Off
14. Waterproof grade: IP44
15. White and black color available.
Product description:
Welcome to using ES-P16A infrared motion sensor switch
The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, saving-energy and practical functions. Three detectors inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely, possessing the functions of power show and detecting show.
Wiring diagram:
. Transport package:
WHITE BOX
Color box
Belist package
