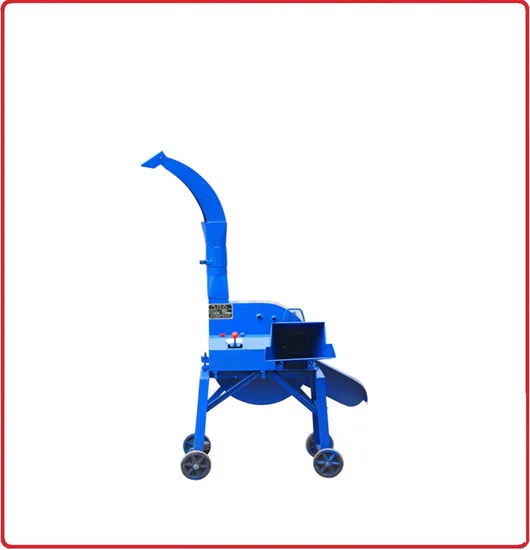

Family Use Dry or Fresh Hay Cutter Machine

Product Description

Chaff cutter, Grass cutter, Hay cutter, Straw cutter
Introduction of chaff cutter machine:

1.Chaff cutter machine mainly used to corn straw, wheat straw, rice straw all kinds of crop straw and pasture. These processed materials suitable for breeding cattle and sheep deer horse etc, chaff cutter can also process cotton stalk, branches, bark, and so on, used forstraw generation ethanol, papermaking and artificial board etc.

2.Chaff cutter machine is a mechanical device for cutting straw or hay into small pieces before being mixed together with other forage and fed to horses and cattle. This aids the animal's digestion and prevents animals from rejecting any part of their food.

Features of chaff cutter machine:

1.Hay cutter machine for animals,papermaking etc
2.cut wet or dry corn straw,wheat straw,hay etc
3.cut various lengths between 10m50mm
4.it is suitable for home use, small and middle size farm
5.save labour and time

Working principle of chaff cutter machine:

1.Chaff cutter machine by motor as a supporting power. Will power transfer to the spindle, the other end of the main shaft gear through the gear box, universal joint, etc will pass the speed to transfer the power of the pressure, and when to grass shengkun materials and processing in pressure between shengkun grass pressure was holding and certain tsao kun speed into cut institutions, the high speed rotating tool cut up by the grass turned out the mouth.

2.Chaff cutter machine is a used for processing forage grass, Zha cut green, dry corn straw, straw and the straw returned silage grass machine.

Function characteristics of chaff cutter machine:

Chaff cutter machine is suitable for cutting all kinds of green grass, dry hay, tobacco, wheat straw, Corn stalk, Agricultural stalks etc.Various kinds of forage grass or medicine.
The main parameters:

Type	Weight(kg)	MachineSize(mm)	Capacity(t/h)	Power(kw)
HY-12.0	1350	2630x1690x1870	12	three-phase motor18.5KW
HY-10.0	1050	2620x1720x1850	10	three-phase motor 15KW
HY-8.0	630	755x1393x1585	8.0	three-phase motor 11KW
BHY-5.0	550	630x1010x1300	5.0	three-phase motor 7.5KW
HY-3.0	320	510x952x1050	3.0	three-phase motor 4KW
HY-2.0	200	920x500x1160	2.0	Single-phase 3KW
HY-1.5	160	2630x1690x1870	1.5	Single-phase 3KW
HY-1.0	105	510x952x1050	0.4	Single-phase 3KW
