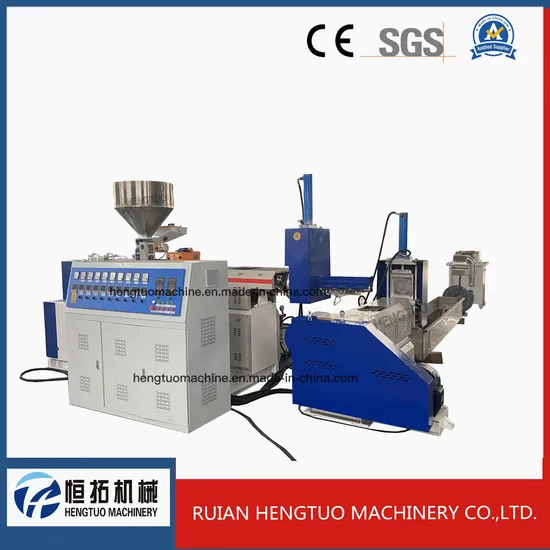

Double Stage Water Cooling Plastic Strip Pelletizing Granulator Machine

Product Description

HT -90, 100,110,120,130,140,150,160,180,200,230
Double Stage waste plastic PP ,PE recycling granulator/Waste Plastic Recycling Pelletizing Recycling Machine
USE:
This machine is suitable for regeneration and granulation of waste plastics, such as HDPE , LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
Application:
This machine is suitable for regeneration and granulation of waste plastics, such as HDPE , LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelletingwith an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
Main technical parameter:

MODEL	HT-120 water cooling doble stage PP PE recycling machine
Screw diameter	Φ120/Φ110 material:38CRMOALA
Screw L/D ratio	20:1/ 10:1
Motor	37.15
Max. output	120-150kg/h

Model	HT-90/80	HT-100/90	HT-110/100	HT-120/110	HT-130/120	HT-140/130	HT-150/140	HT-160/150
Screw (mm)	90/80	100/90	110/100	120/110	130/120	140/130	150/140	160/150
Motor (kw)	18.5/15	22/15	30/15	37/15	45/15	55/18.5	75/18.5	75/18.5
Output(kg/h)	60-80	80-100	100-120	120-150	150-200	180-250	220-300	250-350

Our Services 1.Installation Services Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well. 2.Clients Traning Services We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
