Ultra Thin Wall FEP PTFE PFA Tube
| US$1.90-3.50 | 50 Meters (MOQ) |
Basic Info.
Model NO.
fep thin tube
Contraction Percentage
No
Tensile Strength
19~22 MPa
Working Temp
-70c~+200c
Usage
Insulation, Anti-Corrosion
Color
Clear
Thickness
0.04mm-0.1mm
Factory Certifications
ISO 9001, ISO 13485
Feature
Non-Stick, Non-Toxic
Application
Chemical, Medical, Electrical, Food Industries
MOQ
300 Meters
Production Time
15~25 Days
Transport Package
Plastic Bag+Double Cartons
Specification
customization
Trademark
JY
Origin
Guangdong
HS Code
391732000
Production Capacity
100000/Month
Packaging & Delivery
Package Size
12.00cm * 12.00cm * 105.00cm
Package Gross Weight
2.000kg
Product Description

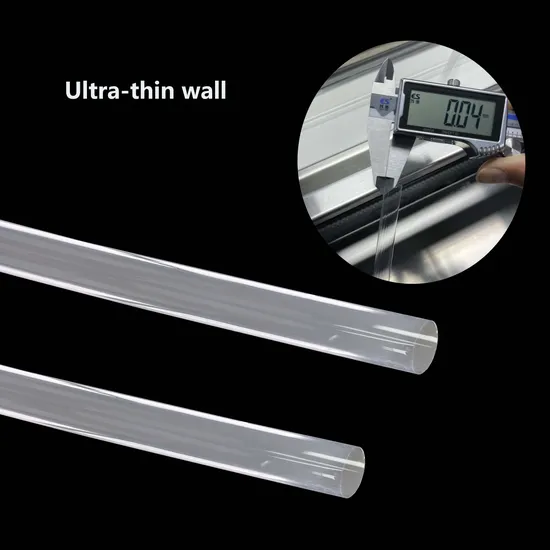

Product Description Ultra thin wall FEP PTFE straight smooth tubing1. Our FEP tube is tailored to your exact requirements through custom size, such as thickness,color, length. 2. The smallest thickness what we can offer is 0.04mm 3. Non-stick, non-toxic,Insulation, Anti-Corrosion, can be used in food and medical industries. 4. Anti low and high temperature, working temperature range -70C~+200C 5. Corrosion resistance, resistance to most chemicals like strong alkali and strong acid.
Technical Date Technical Data of FFE, PTFE and PFA
| Specifications | FEP | PTFE | PFA |
| Chemical/Solvent Resistance | Excellent | Excellent | Excellent |
| Density | 2.15 g/cm3 | 2.16~2.18 g/cm3 | 2.14~2.16 g/cm3 |
| Water Absorption | <0.03% | <0.01% | <0.03 % |
| Specific Gravity | 2.12~2.17 | 2.13~2.22 | 2.12~2.17 |
| Elongation | 250%~330% | 200~450% | 280~400 |
| Tensile Strength | 19~22 MPa | 20~45 Mpa | 27~35 Mpa |
| Hardness Durometer | 55 Shore D | 50~65 Shore D | 55~60 Shore D |
| Coefficient of Friction | 0.05 | 0.02~0.1 | 0.04~0.06 |
| Dielectric Constant | 2.1 MHz | 2.1 MHz | 2.1 MHz |
| Dielectric Strength | 500~600 V/mil | 480 V/mil | 500 V/mil |
| Volume Resistivity | >1018 ohm-cm | >1018 ohm-cm | >1018 ohm-cm |
| Work Temperature | -70~+200ºC | -70~+260ºC | -70~+260ºC |
| Melting Point | 270ºC | 327ºC | 302~310ºC |
Company Profile Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485 Have 2 cleanrooms, to produce food and medical grade tube. A professional manufacturer of PTFE hose, FEP hose and PFA hose
