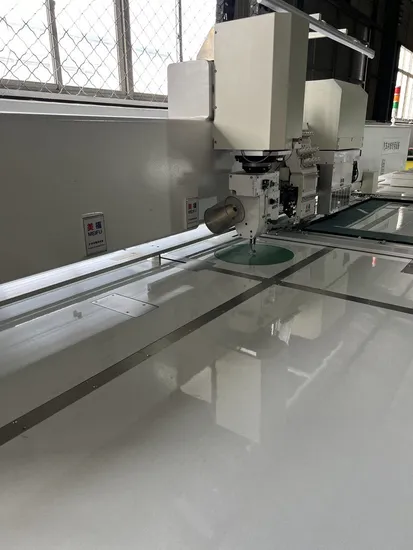

Upholstery Sewing Leather Punch Machine

Product Description

Product Description
Multi-type Punching Knife Machine
Main Features:
Multi-type punching knife for easy exchange, catering to individual needs.
New gantry structure for fast punching speed and silent operation.
Mechanical punching to preserve the original color and quality of leather.
Equipped with casters for easy machine movement.
Customized special electronic control compatible with other punching, sewing, and embroidery machines.
Industrial vacuum silent cleaner for effortless removal of leather scraps.

Company Name: Tianjin Meifurui Technology Co., Ltd.
Punching Machine Technical Description
Tianjin Meifurui Technology Co., Ltd. - Punching Machine Maximum Punching Speed: 1200 holes/min
Punching Tool Types: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm round hole
Customization: Other customized tool heads can be installed
Vacuuming: Yes
Pattern Reading Mode: U disk
Drive Motor: Servo motor
Power Supply: Three-phase 380V/50Hz or single-phase 220V
Drawing Format: DXF
Additional Function: Brush function for manual sewing
Customization Options: Processing area and number of heads
Film Feed Device: Can be customized for improved efficiency
Punching Programming Data: Hundreds of pre-set options available

	product name	specifications and models	remarks
1	Single head CNC punch	MFR-P-1.5-900*600	1 piece at a time
2	Double head CNC punch	MFR-P-2.5-900*600	2 piece at a time
3	Single head CNC punch	MFR-P-1.5-1200*800	1 piece at a time
4	Double head CNC punch	MFR-P-2.5-1200*800	2 piece at a time
5	Four head CNC punchi	MFR-P-4.5-900*600	4 piece at a time
6	Six head CNC punch	MFR-P-6.5-900*600	6 piece at a time
