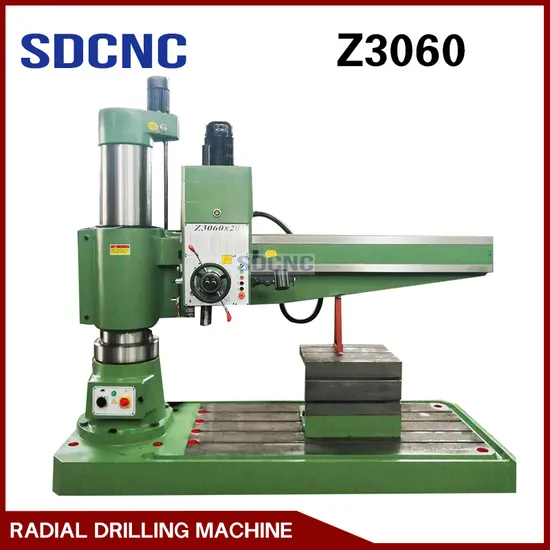

Z3060 High Precision Lathe Tool Heavy Duty Radial Drilling Machine

Product Description

Features:
The radial drilling machine model Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Product Parameters
Drilling Machine Technical Parameters:

SPECIFICATIONS:		Unit	Z3060
Max. drilling diameter		mm	63
Distance between spindle axis and column		mm	450~2000
Distance between spindle end and working surface of base plate		mm	400~1600
horizontal movement of spindle box		mm	1600
Work table size		mm	800 x 630 x 500
Taper in spindle:			No.5
Spindle travel:		mm	400
Number of Spindle Speeds:			16
Range of Spindle Speeds:		r/min	25-2000
Number of Spindle Speeds:			16
Range of Spindle Feeds:		mm/r	0.04 -3.2
Power of main drive motor:		kw	5.5
Weight	N.W	kg	7000
	G.W	kg	8000
Overall dimensions(L x W x H)		cm	308 x 125 x 340
Packing dimension(L x W x H)		cm	321X156X 226

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
