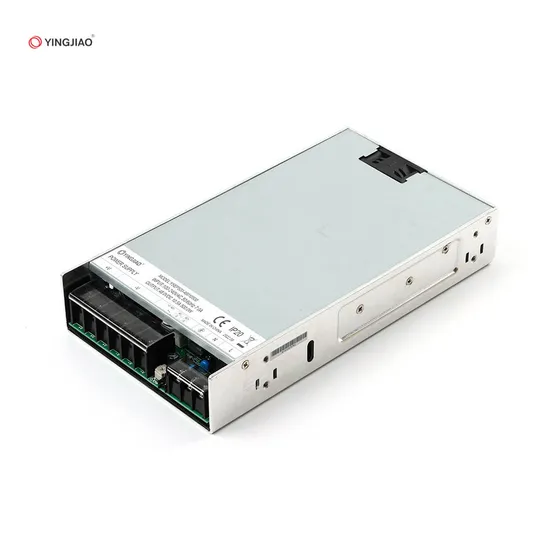

320W Regulated Switching Power Supply Factory Direct 12V DC Centralized LED Strips Driver
| US$23.50 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
YSEP320
Output Power
320W Max.
Input Voltage
90-264V AC
Voltage Regulating Mode
Frequency Modulation Type
Certification
CE, RoHS, CCC, FCC
Product Name
Customized Switched Power Supply 320W
Output Voltage
5-48V
Output Current
0.1-64A
Dimension
115*215*30mm
Output Frequency
50/60Hz
Transport Package
1PC/PE Bag+Inner Box
Trademark
Yingjiao
Origin
Zhejiang, China
Production Capacity
2000 Piece/Pieces Per Month
Product Description
320W Regulated Switching Power Supply 12V DC Centralized LED Strips DriverProduct Description Features :
1. Universal AC input range 2. Built-in active PFC function 3. Protection:Short circuit/Overload/Over voltage/Over temperature 4. Cooling by Built-in DC fan
5. 100% full load burn-in test
6. 3 years warranty Applications:
-Industrial automation machinery
-Industrial control system
| Model No. | YSEP320-00564000 | YSEP320-01226660 | YSEP320-01521330 | YSEP320-02413330 | YSEP320-0486660 |
| DC VOLTAGE | 5 V | 12V | 15V | 24V | 48V |
| Rated Current | 64A | 26.66A | 21.33A | 13.33A | 6.66A |
| Rated Power(Max) | 320W | 320W | 320W | 320W | 320W |
| Ripple & Noise(Max) | 150 | 150 | 150 | 150 | 240 |
| Input Voltage | 90 ~ 264VAC 127 ~ 370VDC | ||||
| Inrush Current | 40A at 230V AC | ||||
| Efficiency | 83.00% | 88.00% | 88.50% | 89.00% | 90.00% |
| Working Temperature | -20 ~ +70ºC (Refer to "Derating Curve") | ||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| Protection | Short Circuit/Over Load/Over Voltage/Over Temperature | ||||
| Connection | terminal blocks | ||||
