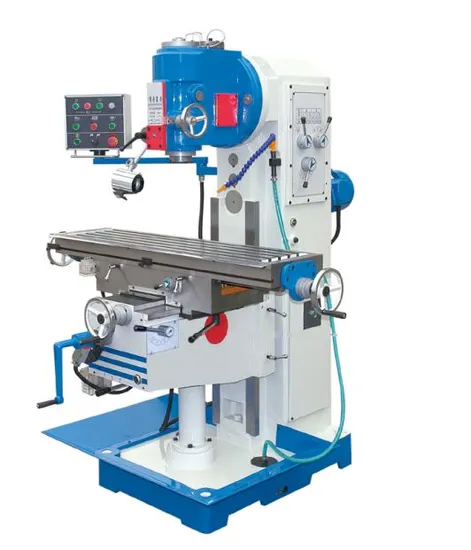

High Precision Vertical Milling Machine Xq5032A Xq5032c with CE ISO Certificate

Product Description

Vertical Milling Machine XQ5032A/XQ5032C
Specification:

Model No.	XQ5032A	XQ5032C
Item No.
Specifications
Table size	1370X320 mm	1370X320 mm
Table Travel (X/Y/Z)	820/300/400 mm	1000/380/400 mm
Distance from spindle nose to work surface	35-435 mm	35-435 mm
Spindle hole taper	7:24 ISO40	7:24 ISO40
Rapid speed of table (X/Y/Z)	1335/1335/1000 mm/min	1335/1335/1000 mm/min
Table feed (X/Y/Z)	XY:30-830 Z23-625 mm/min	XY:30-830 Z23-625 mm/min
T-slots ( NO.Width/Pitch)	3/14/80 mm	3/14/80 mm
Spindle
Spindle speed range	12 steps 35-1500 r/min	12 steps 35-1500 r/min
Stroke of spindle quill	70 mm	70 mm
Distance between spindle axs and column guideway	285 mm	285 mm
Swivel angle of Vertical milling head	±30°	±30°
Other
Main motor power	3 kw	3 kw
Torque of X/Y/Z axis AC servo motor	15 N.m	15 N.m
Overall size	1820x1680x1810 mm	1820x1680x1810 mm
Net weight	1600 kg	1650 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
