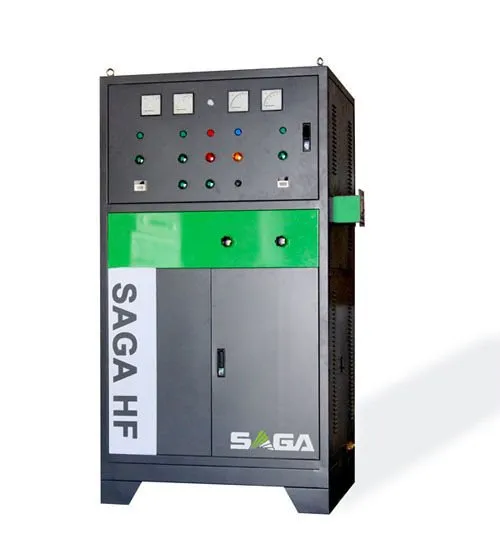

6.78MHz Hf High Frequency Generator From Saga Machinery 20kw

Product Description

6.78MHz HF High Frequency Generator From SAGA Machinery 20KW
High frequency generator(Radio frequency generator) is a plant which can turn normal electric power to high frequency(electronic-magnetic) power, apply this power to the load equipment or electrode, the water or glue molecule with in the work pieces is polarized and rapidly change direction or move follow the frequency change of the electronic-magnetic power, thus cause suddenly friction, this friction between molecule makes the temperature raises, thus the water vaporized and glue bond. High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core pant for high frequency machinery.
Main Application
Wood drying
Wood Bending
Wood board edge joining and gluing
Specifications
Power:50Hz, 3Phase 4Wire;Input Power: 30/40/70KVA; Output Power: 20/30/50KW; Oscillation:6.78MHz;Various Protections; Tuning Vacuum Capacitor; Forced wind cooling; 2output
1)High Frequency Oscillator (radio frequency generator, high frequency generator) is a plant which can turn normal electric power to high frequency(electromagnetic) power.
2)It is suitable for fast curing of glue or water.
3)high Frequency Oscillator is suitable for curved plywood forming or wood panel jointing or hard wood drying.
4)It is a core plant for high frequency machinery.

SPECIFICATIONS FOR HIGH FREQUENCY GENERATOR
	HF15-SA	HF20-SA	HF30-SA	HF50-SA
POWER	380V 50HZ 3PHASE 4WIRE OR CUSTOMIZED
INPUT POWER	20KVA	30KVA	40KVA	75KVA
OUTPUT POWER	15KW	20KW	30KW	50KW
OSCILLIATION	6.78Mhz
PROTECTION	Overload protection,wind pressure detection ,filament protection,cooling fan protection
TUNNING MODE	Tunable vacuum capacitor
COOLING MODE	Forced wind cooling
OUTPUT	2 output
OVER SIZE	950x1000x1800mm	950x1000x1850mm	1000x1100x1850mm	1100x1200x1950mm
WEIGHT	500kg	600kg	650kg	980kg
