Flow Pack Vegetable Fruit Mushroom Potato Pepper Pillow Packaging Machine

Product Details

Product Description

Product Description
Product Description Popsicle Pillow Packaging Machine:
Suitable for biscuits, packaging of all kinds of objects with regular solid state, such ,as bread ,speed wheaten food, moon ,cake ,candy ,medicines, dailynecessities, five metalspart, paper carton or the tray , etc.
Features Packing Machine:
1.Compact machine structure with smaller footprint area.
2. Carbon steel or stainless steel machine frame with nice appearance.
3. Optimized component design realizing fast and stable packing speed.
4. Servo control system with higher accuracy and flexibility mechanical motion.
5. Different optional configurations and functions meeting different specific requirements.
6. High accuracy of color mark tracking function.
7. Easy to use HMI with memory function.
Specification of Pillow Packing Machine:

Model	YL-250X	YL-350X	YL-450X	YL-600X	YL-700X
Film width	Max.250mm	Max.350mm	Max.450mm	Max.600mm	Max.700
Bag length	65-190mm or 120-280mm		150-450mm	160-500mm	180-600mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330mm
Product height	Max.45mm	Max.65mm	Max.80mm	Max.110mm	Max.110mm
Film roll diameter	Max.320mm
Packing speed	40-230 bag/min	40-230 bag/min	40-150 bag/min	20-150 bag/min	20-130 bag/min
Power	220V 50/60Hz 2.4KW	220V 50/60Hz 2.8KW
Machine Dimension (mm)	(L)x(W)x(H)	(L)x(W)x(H)	(L)x(W)x(H)	(L)x(W)x(H)	(L)x(W)x(H)
	3920x670x1320	4020x720x1320	4150x820x1450	4300x920x1460	4380x980x1480
Machine weight	About 500kg	About 550kg	About 650kg	About 680kg	About 720kg

Advantage of flow packing machine :
Screen:Most of the daily operations can be performed through the touch screen. The operation interface is simpler and easier to use than the general model, and has a recipe memory function.
Servo control:3 Servo drive system, compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.
Eye mark position value is adjusted via touch screen. Position value is directly showed on the screen.
In-feed position is adjusted via touch screen. No need to manually adjust the handwheel.
Cutter speed is adjusted via touch screen. Easier to operate than manually adjustment by handwheel.

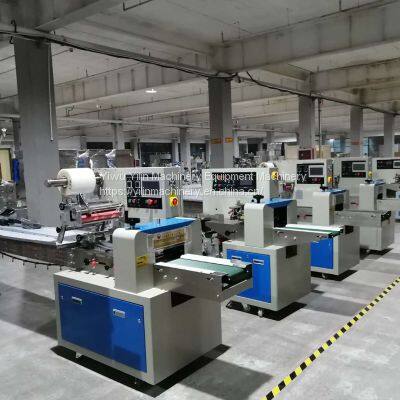

Our factories have advanced and modernized workshop, lead time for small flow packaging machines is greatly reduced from 30 days to 7-15 days compare others factory.
FAQ
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: How about the after service and guarantee period?
A: We make the guarantee time 24 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
