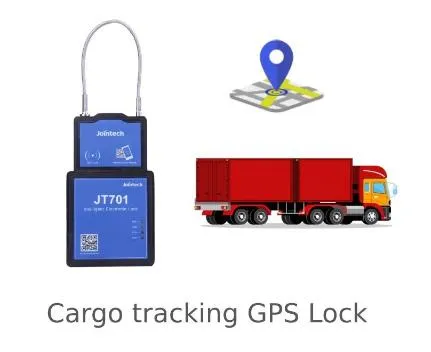

Electronic Security Alarm Logistic Transportation Cargo Temperature GPS Smart Lock

Product Description

Electronic Security Alarm Logistic Transportation Cargo Temperature GPS Smart Lock
Main Features 1. Unique Design with Unlock by RFID tags/SMS password
2. Big capacity battery, Long working time
3. Built-in GSM Module, Remote online monitor
4. Built-in GPS Module, real time Global Positioning
5. Safety Monitoring, Alarms For illegal unlocking
Application: Container ; Trailer ; Van Truck Product Parameters

Type		Function
Basic Function	Transmission mode	TCP
	Data automatic upload	Time interval
	Locating mode	GPS
	Vibration detecting	Built in 3G sensor
	Lock Status	Real time monitoring
	Unlock	RFID/Remote password
	Wake up mode	Call/SMS/Swiping card/vibration/E-Rope cut off
	Alarm	Electronic rope cut off alarm Swiping card alarm Unlock alarm Wrong password alarm Geo fence alarm
Parameters	Material	Engineering plastic
	GPS antenna	Built-in
	GSM frequency	900/1800/900Mhz
	Protection Grade	IP67
	Working temperature	-20 - +60
	Storage temperature	-40 - +80
	Relative humidity	5%-99%
	Average standby current	Less than 0.1mA
	Average working current	Less than 90mA
	Dimension	195*114*37mm
	Weight	700g(including standard accessories)

Function in detail:

No	function	Instructions
01	locating	GPS locating,LBS locating
		1. standby mode, wake up every 30mins and upload 1 location data. after wake up by SMS, CALL, vibration, work 10 mins each time. 2. Moving mode: upload via the setting time interval
02	Electronic-string lock	125K radio frequency base station read ID card number, to avoid wrong reading, high recognize accuracy . RFID read distance can be 20~100mm.
		Own-design electronic hanging rope lock, lock can resistant rust, anti corrosion, high hardness, wear resistance
		When unlock with RFID, the rope can plug out, if not plug out in 5min, it will lock again automatically. When plug in the rope, it will lock automatically also. When the rope is broken by physical damage, system will alert with message.
		When power off, rope keep the status as before, means if it locked before power off, it will keep lock status. If it unlock before power off, it will keep unlock status.
03	Abnormal alert	Geo fencing alert electronic lock Safety alert Vibration alert Low battery alert
04	Remote control	Remote manage the ID number(RFID) under power on status
		Remote unlock, by sending commands.
		Configure system parameters: working mode, vibration value, time point under power on status
05	Charging	Charging by USB cable
		(extension function )Charging by external power supply. When ran out of battery, it's able to use power bank for emergency lock or unlock.

Detailed Photos

About us
FAQ:1. Q:Do you have your own factory?A:Yes, we are manufacturer in China for over 17 years located in Guangdong, China2. Q:Why choose us?A:we have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobileassets monitoring field.3. Q:Do you have your own tracking platform?A:yes, we can provide not just web based tracking software, but also IOS/Android APPs.4. Q:Do you provide customized hardware and software?A:Yes, we can provide not just customized hardware, but also software funcationalities.5. Q:What's your delivery time?A: For samples, 2-4 days, bulk order, 7-15 days generally
